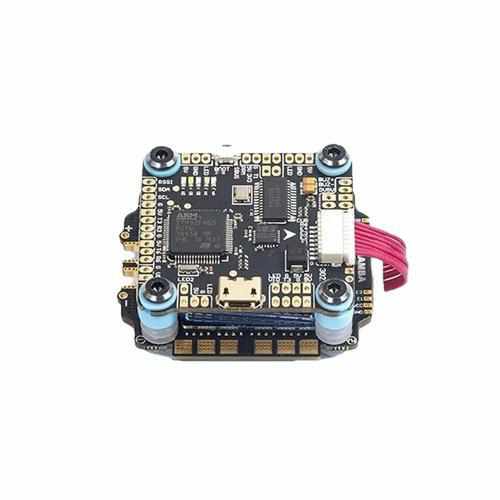

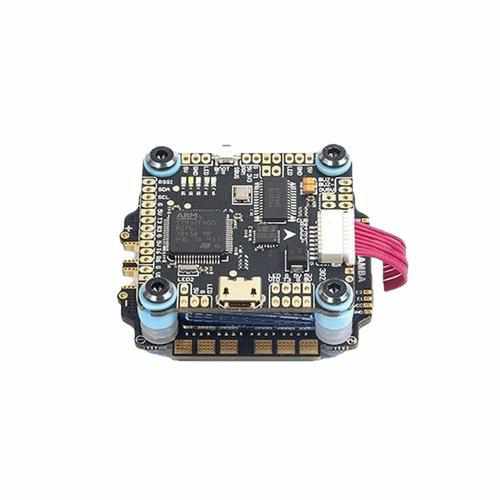

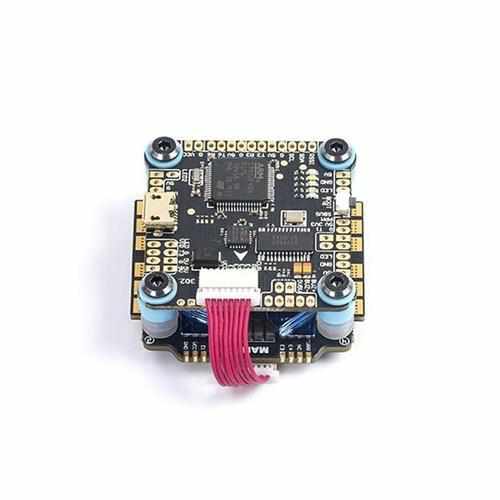

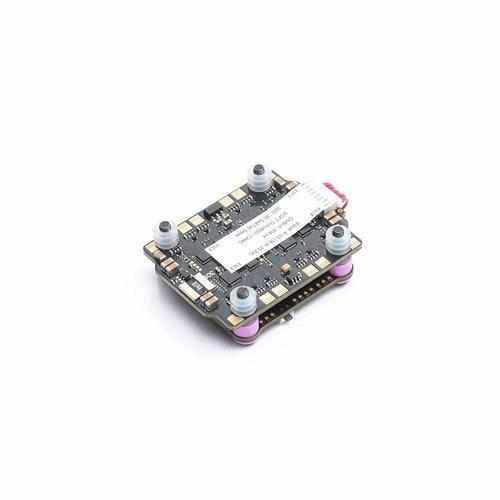

Diatone MAMBA F405 MK2 Flight Controller / F40 DSHOT600 Brushless ESC

Specificaiton:

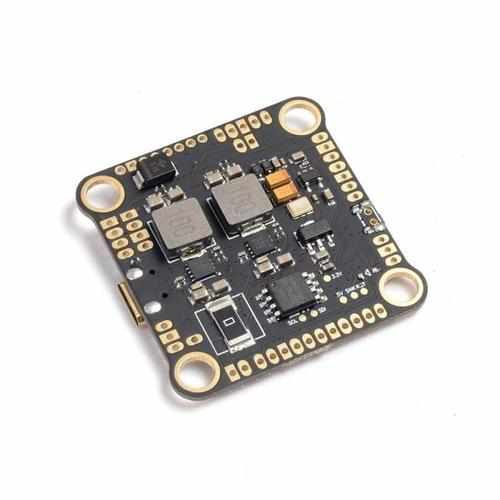

Mamba F405 FC

Item name: F405 Betaflight Flight Controller

Input power: 12.6-25V (3-6S)

BEC:5V 2.5A & 9V 2A

MCU: STM32F405

Gyro: MPU6000

Flash: 16MB

OSD: AT7456

Mounting hole: M3

Weight: 6g

Description:

INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)

CONTINUE CURRENT: 40A×4 BURST

CURRENT: 50A (10S)

BEC: NO

MOUNTING: 30.5mm/M3

CURR: 169A

About Current: 50A/4S OR 40A/5S (The same total power)

Motor：Suggest Below 1900KV for 6S

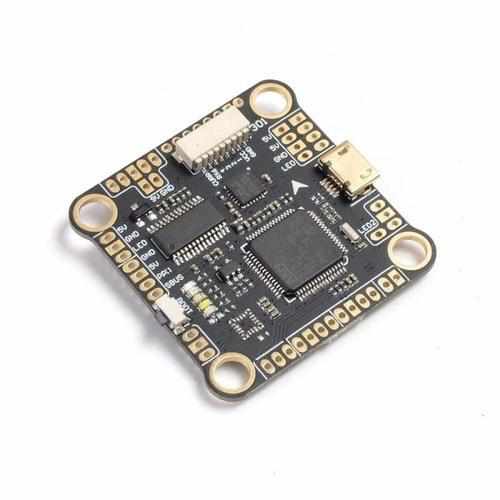

FLIGHT CONTROL

Specifications

MCU: 168MHz STM32F405RGT6 32BIT

IMU: MPU6000

Baro: No

OSD: BF OSD

Blacbox: 16M Flash Memory

Uarts: 3Set

ESC Soft: Dshot300/600/1200

ESC Telemetry: RX6

LED: Blue&Orange for FC Status,Green 9V,White 5V,Red 3.3V

WS2812 LED Control: BF LED Control

Smartaudio: Yes

RSSI: Yes

Buzz: Yes

PDB Specifications

Input: 3~6S Lipo (12.6~25V)

VTS Protection: Yes

BEC: 5V 2.5A & 9V 2A

FC Firmware

BetaFlight

Target: FURYF4OSD

Physical

Mounting: 30.5×30.5mm,Φ3

Dimensions:

Weight: 7.5g

Including

1×FC MAMBA F405 MK2

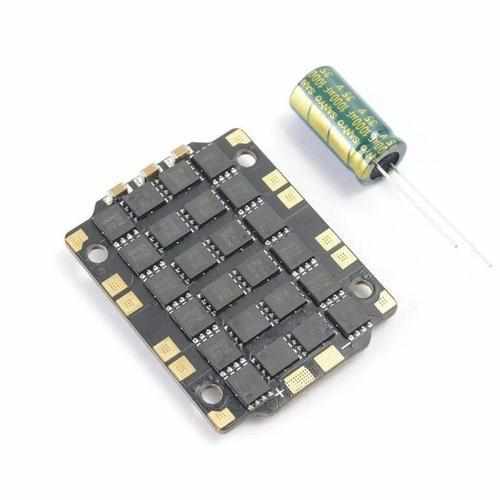

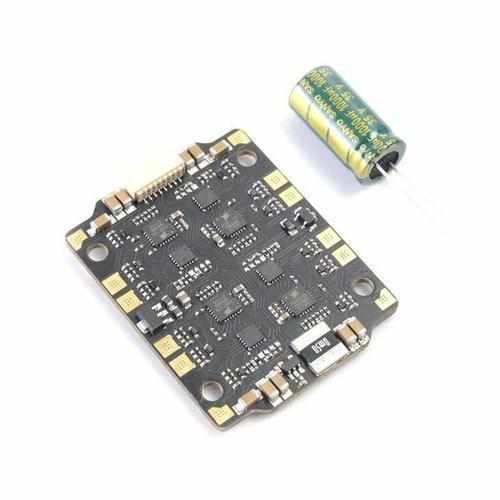

ESC-MAMBA F40 MK2 4IN1 40A ESC

Description:

INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)

CONTINUE CURRENT: 40A×4 BURST

CURRENT: 50A (10S)

BEC: NO

MOUNTING: 30.5mm/M3

CURR: 169A

Capacitance: Samsung 564UF(47UF×12pcs)

About Current: 50A/4S OR 40A/5S (The same total power)
