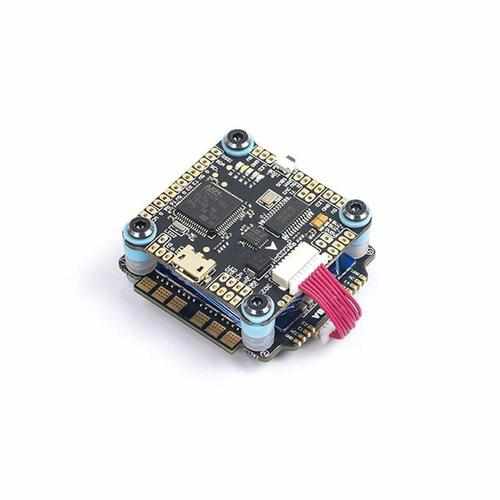

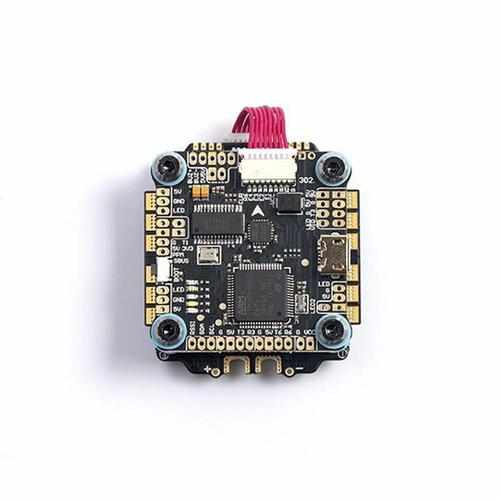

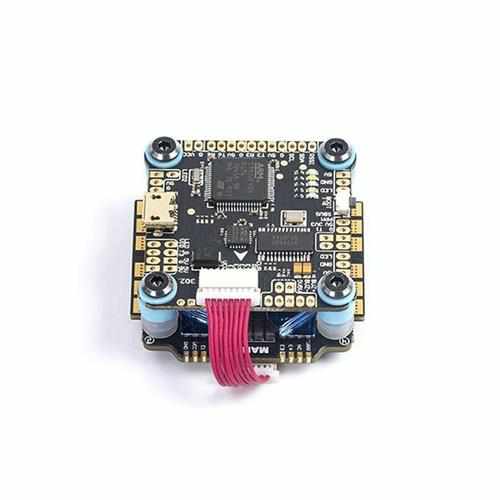

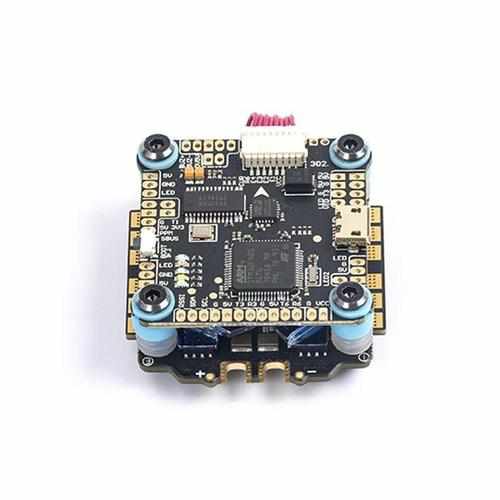

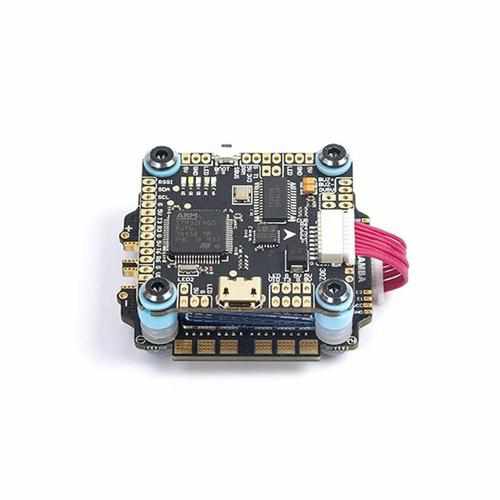

Diatone MAMBA F405 MK2 V2 Flight Controller

MAMBA F405 MK2 Flight Controller OSD F50 50A Blheli_S 3-6S DSHOT600 FPV Racing Brushless ESC STACK

MAMBA F405 MK2 Flight Controller

MCU: STM32F405RGT6

Frequency: 168MHz

IMU: MPU6000

OSD: AT7456E

Blackbox: 16M Memory

Uarts: 3 Set

Receiver: TBS/PPM/SBUS/IBUS/DSM

RSSI Pad: Yes

Buzzer Pad: Yes

CURR Pad: Yes

Motor: 4 Set

BEC 3.3V: Yes

BEC 5V: Yes

BEC 9V: Yes

MB LED: No

BF LED: Yes

Bluetooth: NO

Input: 6S Lipo

VTS Protection: Yes

Soft: Betaflight

Target: FURYF405OSD

Mounting: 30.5×30.5mm,⌀ 3

Size: 38.0×38.0×7.0mm

Weight: 7.5g

F50 50A Blheli_S 3-6S DSHOT600 ESC

Output current: 50A

Peak current: 55A

Input: 6S Lipo

Blheli_S

CURR: Yes

Telemetery: NO

BEC: NO

Target: CH40

Dshot: Dshot 300/600

Mounting: 30.5×30.5mm,⌀ 3

Size: 45.0×41.0×6.5mm

Weight: 15g

Package Included:

1 x MAMBA F405 MK2 Flight Controller

1 x F50 50A Blheli_S 3-6S DSHOT600 ESC
