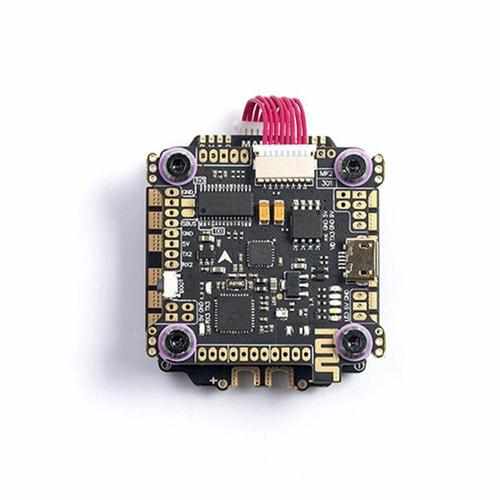

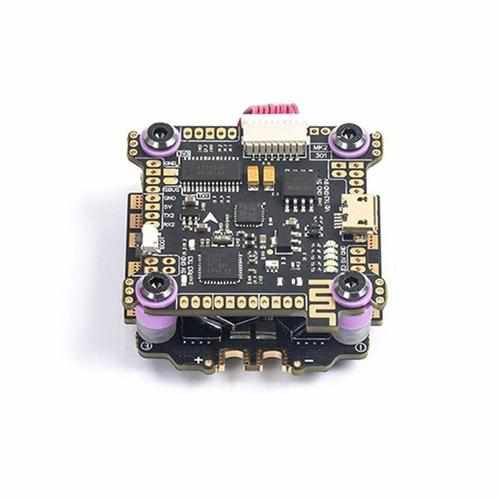

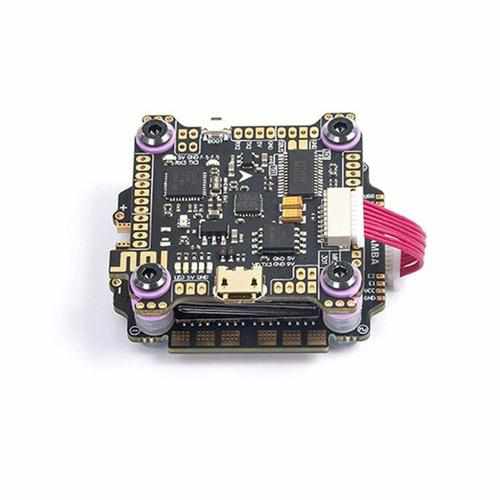

Diatone Mamba F722S F7 Flight Controller / 60A 4in1 ESC Stack

Mamba F722S F7 OSD Bluetooth Flight Controller & F60PRO 60A BL_32 3-6S 4in1 ESC Stack

60A Specification:

Brand Name: Mamba

Model: F722S F60Pro Stack

Item Name: 30.5x30.5mm F7 Flight Controller & 60A 4in1 ESC Stack

F722S F7 OSD Bluetooth Flight Controller

MCU: STM32F722RET6 ( 216MHz)

Gyroscope: MPU6000

OSD: AT7456E

Blackbox: 16M Memory

Input Voltage: 3-6S Lipo

Firmware: MAMBAF722

BEC Output: 5V ; 9V

Support TBS/PPM/SBUS/IBUS/DSM Receiver

Support Mamba LED /Betaflight LED Configuration

Support Speedy Bee APP

Size: 41.5×41.5×7.5mm

Mounting Hole: 30.5x30.5mm ( M3)

Weight: 7.5g

F60PRO 60A BLHeli_32 3-6S 4in1 ESC

Con. Current: 60A

Burst Current: 75A ( 5 Seconds)

Input Voltage: 3-6S

Firmware: MAMBA F60 PRO

Support DShot300/600/1200

Current Sensor: YES

Telemetry Function: Yes

BEC Output: YES

Size: 45.0×41.0×6.5mm

Mounting Hole: 30.5x30.5mm ( M3)

Weight: 15g

50A Version:
FC Specifications:

MCU: 216MHz STM32F722RET6 32BIT

IMU: MPU6000

Baro: No

OSD: BF OSD

Blacbox: 16M Flash Memory

Uarts: 6Set

ESC Soft: Dshot300/600/1200

ESC Telemetry: RX6

LED: Blue&Orange for FC Stat us,,Green 9V,White 5V,Red 3.3V

Controller: 4 Set 2812 LED

Bluetooth: SpeedyBee APP

Smartaudio: Yes

RSSI: Yes

Buzz: Yes

Input: 3~6S Lipo (12.6~25V)

VTS Protection: Yes

BEC: 5V 2A & 9V 2A (Max 3A)

ESC Specifications:

F50PRO

INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)

CONTINUE CURRENT: 50A×4

BURST CURRENT: 55A (10S)

BEC: NO

SOFT: Dshot300/600/1200

MOUNTING: 30.5mm/M3

Supply : Panasonic High Frequency 470uF/35V

Weight: 11.5g (ESC) 3.1g (Cooling fin)

Size: 36.5×46.5×6.4mm

Package Included:

1x F722S F7 Flight Controller

1x 4in1 ESC

1x bag of Screws

1x Cable
