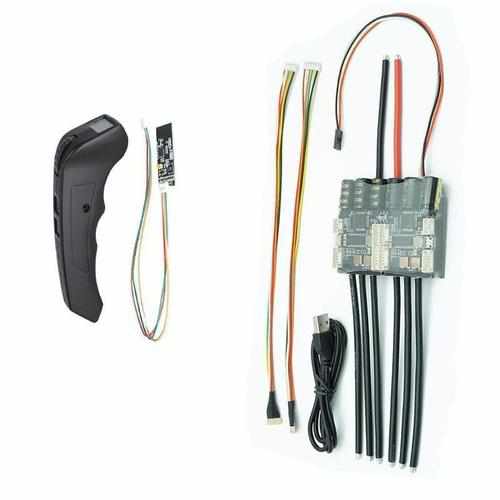

DIY ESC FSEC 4.20 + Screen Remote Controller

Features:

Dual ESC can reach 100A big current, give your board strong power

One PCBA board integrate two FSESC4.20 ’s function by internal CAN BUS circuit connection.

The mater and slave board connection can be switched On/Off

Delicate design in details for high quality assurance: add Anti-vibration silicon pad for screw heatsink and heat-transfer pad

Preserve Bluetooth module and RF module connections for both master and slave board

Super small size and light weight with heatsink: 79mm*65mm*19mm(L*W*H), wight: 150g

Specs of Dual FSESC 4.20

Hardware:V4.20

Firmware:Latest Version

Current:50A continuous/single, 100A continuous/dual , Instantaneous current 150A per single, total 300A for system instantaneous current.

Voltage: 8V-60V (Cells: 3-13S LiPo)

BEC: 5V@1.5A

BEC type: Internal driver support

Modes: DC, BLDC, FOC (sinusoidal)

Timing: Software calibration

Cutoff Voltage: Programmable

Frequency: PWM input

Governor: No

Programming card: No

Reverse: Yes

Features of VX2 Remote Controller

2.4Ghz band width

Real time data reading and 0.95OLED display

Support 3 speed modes

Support cruise control mode

Remote and E-skateboard power indication lights

Rechargeable Li-ion Battery

Wrist strap

Battery last for 12 working hours
