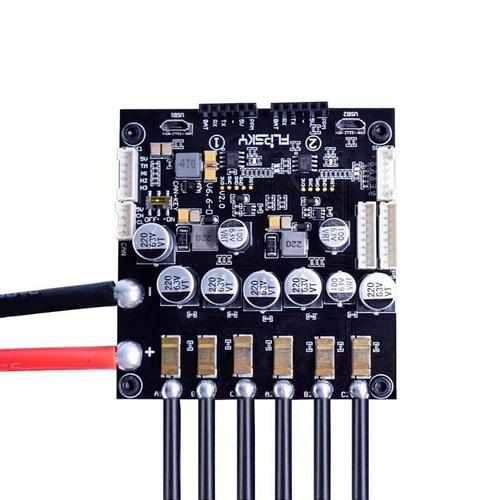

Dual FSESC6.6 with Aluminum Heatsink Mini

Features

Dual ESC can reach continuous 200A big current, give your board strong power

One PCBA board integrate two FSESC6 ’s function by internal CAN BUS circuit connection.

The mater and slave board connection can be switched On/Off

Preserve Bluetooth module and RF module connections for both master and slave board

Aluminum anodized Heat sink with fins design for better heat dissipation

size with heat sink: 81x77x20mm

PCB layers: 8 layers, thickness: 3oz/layer, total 24 oz thickness

Specifications:

Hardware: V 6.6

Firmware: Latest firmware version

Voltage: 8V - 60V (Safe for 3S to 12S LiPo) for the dual ESC

Voltage spikes may not exceed 60V

Current: Continuous 100A single, total 200A , Instantaneous current 400A per single, total 800A for system instantaneous current.

5V 1.5A output for external electronics for single

3.3V 1A output for external electronics for single

Modes: DC, BLDC, FOC (sinusoidal)

Supported sensors: ABI, HALL, AS5047

The package contains:

1*Dual FSESC6.6+Heat sink

2*VESC Sensor Wires

1*Micro USB

1*Manual
