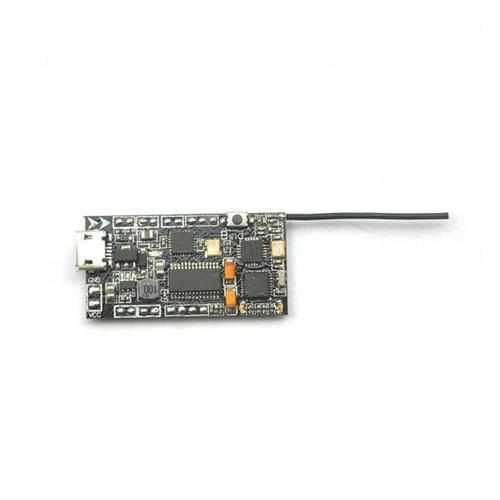

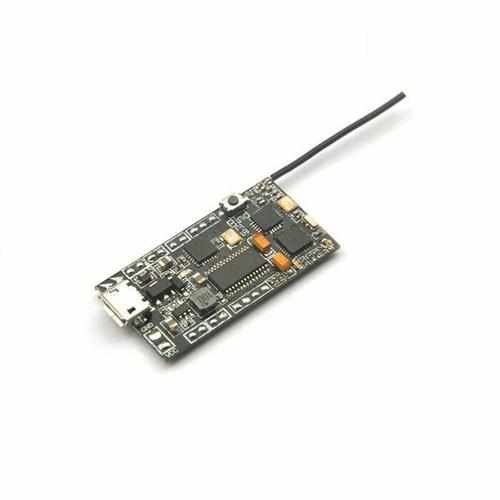

Eachine AIOF3_BRUSHED Flight Control Board

The AIOF3_BRUSHED flight controller is a Highly integrated F3 flight controller both for Indoor FPV flight and outdoor FPV.

The flight controller integrate OSD and Receiver, run Betaflight firmware. It’s amazing, you only just get ready your VTX and camera, it’s simple to DIY a whole FPV racing Quadcopter with brushed motor .

Specifications:

Brand Name: Eachine

Item Name: Flight Control Board

Size: 38mm*19mm

Weight: 3g

Processor: STM32 F303 MCU

Sensor: SPI Sensor MPU6000

Target Omnibus: F3

Firmware Version: Betaflight 3.0.1

Features:

-SBUS/PPM/DSM2/DSMX input

-LED_STRIP solder pin

-BUZZER solder pin

-Air mode ready

-Built-in OSD(Using F3 MCU controls OSD over SPI bus in DMA mode)

-OSD Configuration has been include in BETAFLIGHT GUI

-With 4 large current NMOS transistors, operating current of up to 10A each

-Radio Stick to control PID Tunes

Receiver Option:

-Frsky compatible 8ch SBUS receiver(D8 Mode)

-Flysky compatible 8ch PPM receiver(AFHDS 2A Mode)

-DSM2/DSMX compatible Receiver

OSD Stick Commands

Invoking

On startup screen, When disarmed, enter THR MID + YAW RIGHT + PITCH UP

Page Navigation Cursor on PAGE

Next Page: YAW RIGHT

Previous Page: YAW LEFT

Cursor Navigation

UP: PITCH UP

Down: PITCH DOWN

Right: ROLL RIGHT

Left: ROLL LEFT

Changing Values

Increase: YAW RIGHT

Decrease: YAW LEFT

Exiting

Cursor on EXIT or SAVE+EXIT then YAW RIGHT

(Be careful that the cursor disappears for EXIT)

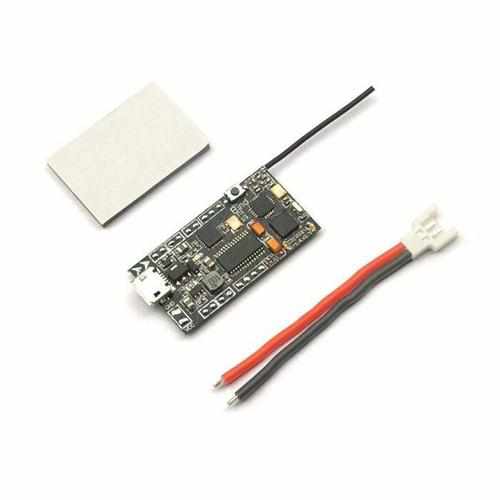

Package Included:

1 x AIOF3_BRUSHED Flight Control Board
