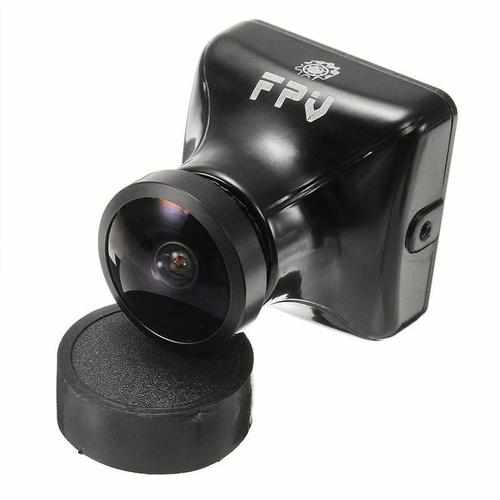

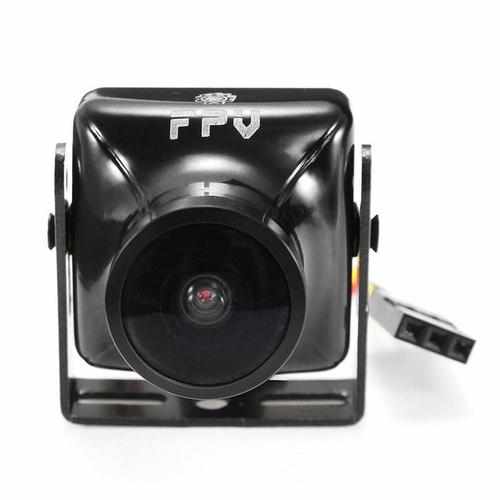

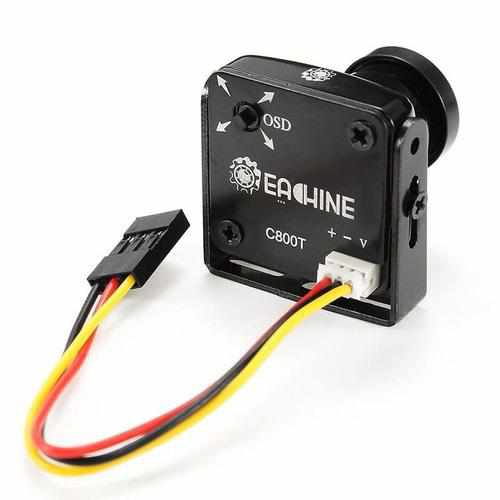

Eachine C800T 1/2.7 CCD 800TVL 2.5mm Camera

Product manual

Model

FPV cameras
Image Sensor
1/2.7"micron CCD Four unity
Horizontal Resoulution
D1 960H
Lens
2.5mm, FOV 150 °, M12
Video formats
PAL/NTSC (OSD Internal adjustable)
Signal to noise ratio
>60Db(AGC OFF)
Electronic shutter
PAL: 1/50-100.000, NTSC:1/60-100,000
Ratio
16:9
Automatic gain control
YES
Backlight compensation
YES
Intensity of illumination
0.001Lux/1.2F
Automatic gain control
adjustable
Backlight compensation
adjustable
Power
DC5V-15V
Net weight
15g
Dimensions
25mm*25mm
OSD
exposure
Electronic shutter/automatic gain control/brightness/digital wide dynamic
Backlight model
Close/backlight compensation/light inhibition
The white balance
Automatic tracking the white balance
Day and night mode
Internal auto/color/black and white mode
Video Settings
contrast/ sharpness / saturation / Digital noise reduction / Digital wide dynamic
language
Chinese/English/German/Italian/Russian
Restore the factory Settings
OK
Save the exit
OK

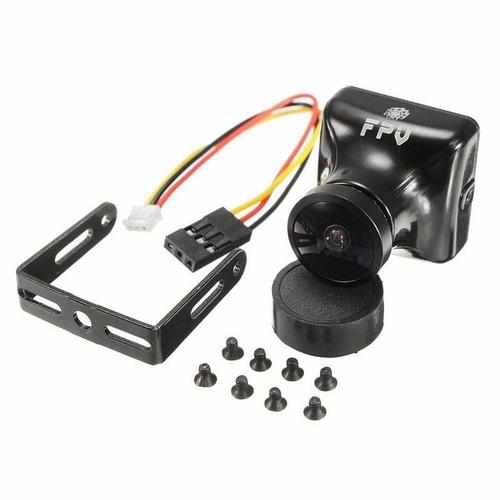

Included

1 x Eachine C800T Camera

1 x JST-ZH to TJC8 3P Cable

1 x Bracket

8 x Screw
