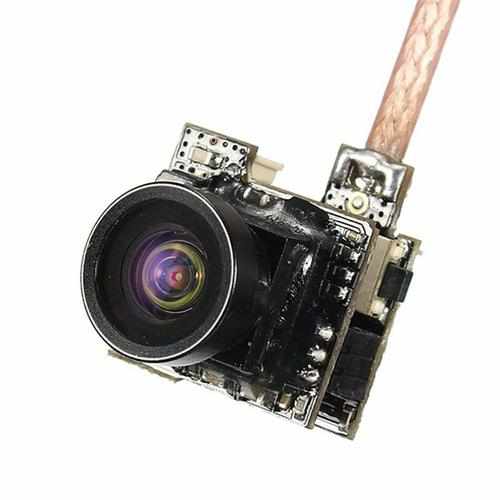

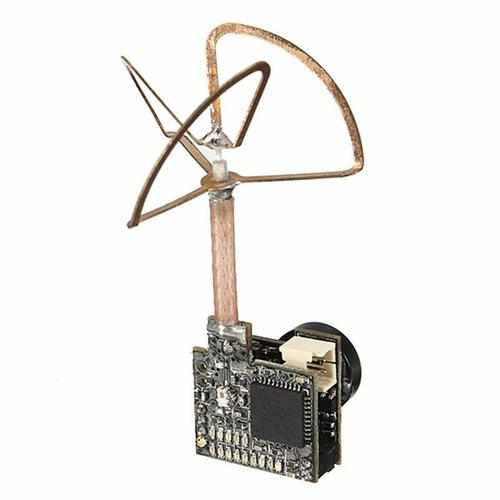

Eachine E010C E010S AIO FPV Camera

FPV Camera:

Sensor: 1/3 "CMOS

Lens: M7 800TVL Lens

Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective

Format: NTSC / PAL (switchable)

Power consumption: 380mA @ 3.7V

Power: 3.6-5.5V

Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

Transmitter:

Support video format: NTSC / PAL

Output Impedance: 75 Ohm

Output signal strength: 23 ~ 24dBm

Output Power: 25mW

Wireless Channel: 40CH

Operating voltage: 3.6V ~ 5.5V

Current: 100mA

Audio carrier: 6.5MHz

Button function

Short press (Apr. 1 sec or less): Change channels 1-8

Long press (More than 1.5 sec): Change bands A-B-E-F-R

Long + press (More than 3 sec): Change NTSC/PAL system

NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)

Feature:

AIO FPV camera, transmitter , atnenna all 3 functions in one limit size and weight

150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective

Five bands 40 channels with Raceband

Package Included:

1 X FPV Camera

1 X Cable
