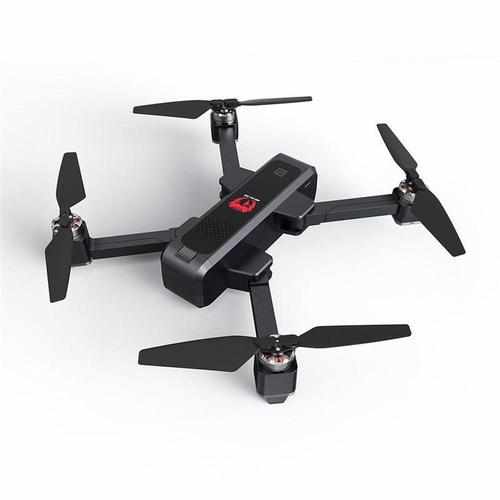

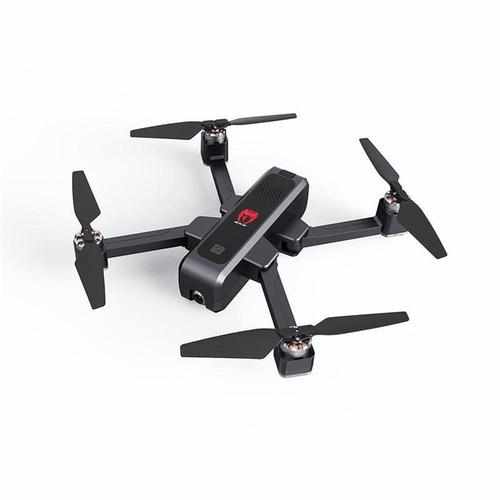

Eachine EX3 RC Drone

Specification:

Aircraft & Remote Controller

Dimensions

Unfolded: 450×450×75mm
Folded: 190×130×75mm

Weight (with Battery)

about 640g

Color

Black

Diagonal Size

330mm

Motor

Brushless 2204 1400KV

ESC

8A

Max Flying Time

above 20mins

Built-in Positioning Sensor

GPS / Optical Flow / Barometer / Ultrasonic

Hovering Accuracy (Indoor)

Vertical: ± 0.3 m
Horizontal: ± 0.3 m

Hovering Accuracy (Ondoor)

Vertical: ± 0.5 m
Horizontal: ± 1.5 m

Max Ascending Speed

3m/s

Max Descending Speed

2m/s

Max Flying Speed

40km/h

Flight Altitude Limit

150m

Max Control Distance

above 1.6KM

Wind Resistance Rating

<4 level

Operating Frequency

2.4G

Remote Control Battery

AA*2 (NOT Included)

Usage Time

About 12h

EIRP

20dbm

Camera

2K 5G WiFi

APP

X-DRONE

Photo Resolution

2048*1152

Video Resolution

2048*1152

Local Video Frame Rate

20

FPV Frequency

5G WIFI

FPV Distance

300m-400m

Lens (Viewing Angle)

110°

Aperture

f/2.4

Focal Length

1m to ∞

Sensor

1/3" CMOS

Effective Pixels

2M

ISO Range

Video / Photo: 100-1600 (Automatic)

Shutter Speed

1/30s-1/10000s

File System

FAT32

Extended Memory

Maximum support 32GB

Memory Card

Micro SD-Card Class10 and above

Gimbal Type

SingleAxis

Pitch Rotation Range

0°-90°

Type

Li-Po

Voltage

7.6V

Capacity

3400mAh

Weight

165g

Operating Temperature

5℃-40℃

Charging Time

About 4 hours

Rated Input

5V/2A or above 2A

Rated Output

3.8V/2A

Operating Temperature

5℃-40℃

Features:

- With Foldable and portable design, the drone is easy to carry.

- With 5G wifi function can be connected APP, APK system to take pictures, video, real-time transmission through the phone camera image

- Full HD 2K camera. Support shooting 2K 30fps with 8MP CMOS sensor,wide-angle lens,retain the most original details,make your creation more inspirational.

- EX3 equipped with single-axis mechanical gimbal,which can reduce shake and keep shots stable effectively.

- Camera angle can be remote controlled to pitch from -90° to 0°.

- Ultrasonic sensor assists barometer to keep super stable altitude hold.

- Follow Me. The EX3 camera will lock on your mobile phone,when using this function, the aircraft will track you automatically and capture your movement with a particular aerial view.

- Point of Interest. Set a specific building,object or position as your point of interest.With point of interest,your aircraft will continuously circle clockwise around the preset point.

- Optical Flow Positioning. The built-in optical flow sensor that gets the real-time optical flow information and makes integrating computations.

- Tap Fly. In the waypoint flight mode,you can just focuson composing,EX3 will fly to the target or fly in the direction you tapped on the screen,and change the flight paths smoothly if you re-planed the track on the screen again.

- Smart remote control alarm function.The transmitter buzzer receives the voltage status of the drone will send out beep sound once the drone is in low volatage.

- OLED screen. Assists the drone to fly in any flight environment.

- Left / Right throttle control switch mode.

- The charging progress will displayed on the charger, and can be charged 2PCS battery at the same time.(Innovative use of multi-head input, users can choose to use one input line when charging two batteries (the total charging time is about 8 hours), or you can use two input lines to connect two USB adapters, the fastest 4 hours full.)

- With 7.6V 3400mAh battery, the fly time up to 20 mins.

- With 4 colorful LED lights assist night flight.

- The quadcopter fuselage is made of high strength and resistant engineering plastics,lightweight and durable resistance.

Function: Forward/Backward, Turn left/right, Up/down, 3-level flight speed, 2K Camera, WiFi FPV, GPS, Optical Flow Positioning, Altitude Hold Mode, Follow Me, Point of Interest, Tap Fly, Surrounding Flight, LED Light

Package Included:

1 x Eachine EX3 Quadcopter

1 x Remote Controller

1 x 7.6V 3400mAh Li-Po Battery

1 x Balance Charger

1 x USB Charging Cable

4 x Spare Propeller

1 x Wrench

1 x User Manual
