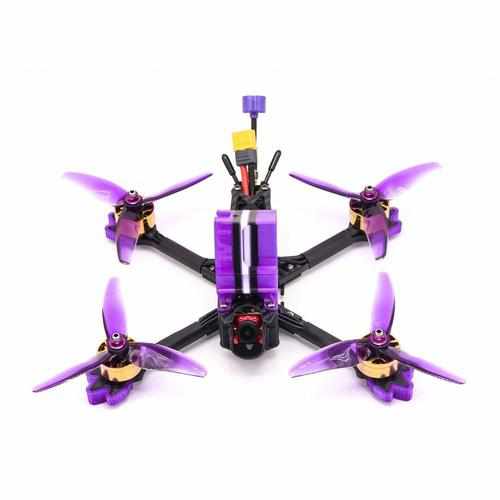

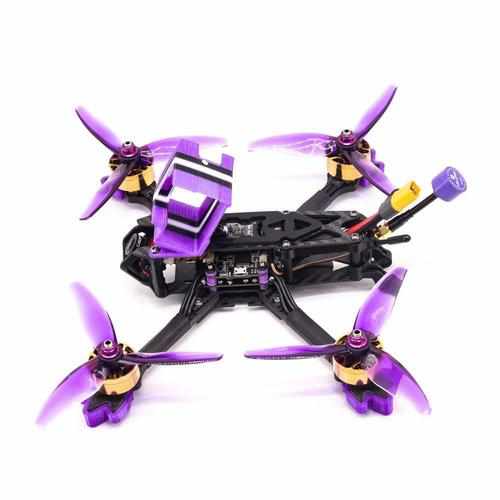

Eachine LAL 5style 220mm 4S FPV Racing Drone

It means 5 Inch freestyle fpv racing drone reached a new level of cost-effective and appearance.

Made with more TPU protection parts , smooth power system and more different receiver version to convenient your selection. PNP and BNF version has ready and you will love flying it . Let's enjoy the 5style!

Specification:

Brand name: Eachine

Item name: LAL 5style 220mm 4S Freestyle 5 Inch FPV Racing Drone

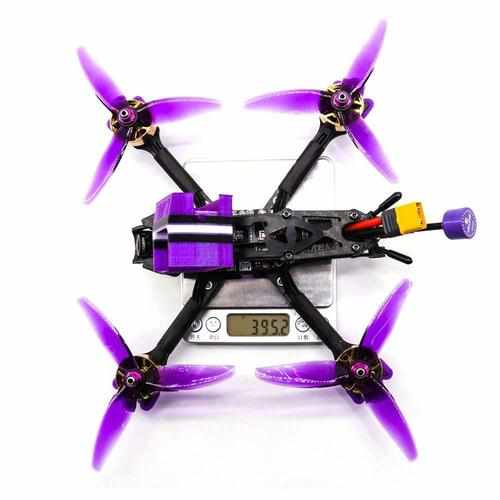

Drone weight: 395.20g (Without Battery)

Frame Kit

Wheelbase: 225mm

Bottom plate: 2mm

Upper plate: 2mm

?Arm plate: 5mm

?X plate: 2mm

Motor

Mode: 2307

KV: 2450

Idle current (IO/10V): 2.1A

No.of Cells(Lipo): 3-4S

current: 52A

Max. power: 830W

Max. thrust: 1337g (4S/5″)

Configu-ration:12N14P

Internal Resistance(Rm): 0.0386Ω

Stator diameter: 23mm

Stator thickness: 7mm

Motor diameter: 28.5mm

Motor length: 19.7mm

?Shaft length: 34.2mm

Shaft diameter: φ5mm

Motor mount hole size: M3

Install hole distance: 16*16mm

Recommend propeller: 5-7 Inch

Weight: 39.5g

ESC

50A 3-6S Blheli_32 DSHOT1200 4 IN 1 ESC

Continue current: 50A

Burst current: 60A (10s)

Input voltage: 3-6S

BEC: NO

Current sensor: YES

Main control chip: STM32F051

Firmware: Blheli_32

Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOT

MOS: 5X6

Installation hole: 30.5x30.5mm/φ3

Dimension: 49x37mm

?Weight: 13.5g

Flight Controller

LAL-F405 BT Flight Controller

Main control chip: STM32F405

IMU: MPU6000 (By SPI)

?Input voltage: 2-6S

?Firmware: MATEKF405

?Barometer: BMP280

?Integrated OSD , support DMA mode (use F4 MCU control OSD)

?Support Betaflight configure

BEC: 5V/2A 10V/2A

Reserve MicroSD BlackBox

5 serial ports and I2C interface are reserved to facilitate GPS access (Bluetooth occupies TX5.RX5)

Support receiver (PPM / D_S_M / IBUS / SBUS, SUMH, SUMD, SPEKTURM1024/2048, XBUS )

?Supports programmable LED Sprit

?Supported firmware: betaflight / cleanflight / inav

?Reserved buzzer interface

BAT and CRT, can monitor battery voltage and current (need additional current sensor)

?Install hole: 30.5x30.5mm

Weight: 5.9g

Camera

Caddx Ratel 1200TVL Camera

Brand Name: Caddx

Item Name: Ratel

Color: Red

Lens: 2.1mm

?Image Sensor: 1/1.8" Inch starlight HDR sensor

?Horizontal Resolution: 1200TVL

?FOV: 180 Degree

?Min. Latency: 8ms

?TV System: NTSC & PAL (changeable)

?Image: 16:9 & 4:3 (changeable)

?WDR: Super WDR (HDR)

?Min. Illumination: Starlight

?Synchronization: Internal

?Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000

?S/N Ratio: >60dB (AGC OFF)

?Video Output: CVBS

?Camera OSD: Separate OSD

?DNR: 3-DNR

?Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN

?Day/Night: Auto/Color/B&W/EXT

?Dimensions: 19mm*19mm*19mm

?Wide Power Input: DC 5-40V

?Work Temperature: -20℃~+60℃

?Work Humidity: 20%~80%

?Weight: 8g (N.W.)/ 40.5g (G.W.)

VTX

TX805 /5.8G 40CH 25/200/600/800mw VTX

Frequency: 5.8G

Channels: 40CH

Input voltage: 7V~24V

5V camera power: 120mA(MAX)----25mW@12V

?5V camera power: 200mA(MAX)----200mW@12V

?5V camera power: 300mA(MAX)----600mW@12V

?5V camera power: 350mA(MAX)----800mW@12V

Support TBS Smart Audio

Power supply: 5V / 3A output for Camera

Output power: 25mW/200mW/600/800mW switchable

Antenna connector: MMCX

Dimensions: 36X22X5mm 30.5hole

Weight: 8g(Withour antenna)

Propeller

Racerstar 5046 3-blade

Meterial: PC

Blade: 3

Color: Transparent

Center thickness: 7mm

Propeller diameter: 127mm

Weight: 5.1g/pc

Package Included:

1 x LAL 5style 220mm 4S Freestyle 5 Inch FPV Racing Drone

4 x CW 5046 Propeller

4 x CCW 5046 Propeller

1 x Retail Box
