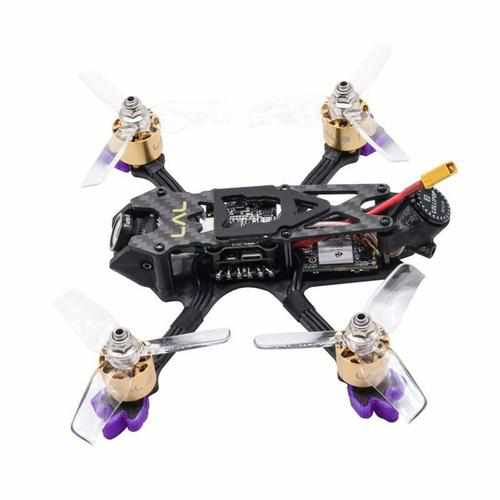

Eachine LAL3 3-4S FPV Racing Drone

Specification:

Brand name: Eachine

Item name: LAL3 3 Inch 3-4S FPV Racing Drone

Take off weight: 175.3g

Frame Kit

Wheelbase: 145mm
Bottom plate: 3mm
Upper plate: 2mm

Motor

Mode: 1408
KV: 3750
Idle current (IO/10V): 0.6A
No.of Cells(Lipo): 3-4S
Summit current: 23A
Max. power: 386.4W
Max. thrust: 600g
Configu-ration:12N14P
Internal Resistance: 0.0495Ω
Stator diameter: 14mm
Stator thickness: 8mm
Height: 29.5mm
Width: φ20mm
Shaft diameter: φ5mm
Motor mount hole size: M2
Install hole distance: 12*12mm
Recommend propeller: 2-3 Inch
Weight: 17g

ESC

25A 3-4S Blheli_32 DSHOT1200 4 IN 1 ESC
Continue current: 25A
Burst current: 30A (10s)
Input voltage: 3-4S
BEC: NO
Current sensor: NO
Main control chip: STM32F051
Firmware: Blheli_32
Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOT
Weight: 3.8g
Installation hole: 20x20mm/φ2
Dimension: 31*29mm

Flight Controller

LAL3-F411 Flight Controller
Main control chip: stm32f411
IMU: mpu6000 6-axis sensor
BEC: 5v / 1a
Integrated OSD
PPM / IBUS / UAR sharing: UART1-RX
Installation size: 20 * 20
Weight: 3.0g
Supported firmware: betaflight / cleanflight / inav
Supports programmable LED Sprit
Reserved buzzer interface

Camera

Caddx Turtle V2 1080p 60fps HD Camera
Horizontal: 800TVL
TV system: NTSC/PAL,changeable
Power Input: DC 5-20V
Lens: 1.8mm
FPV FOV: 155°
Recording FOV: 160°
DWR:YES
OSD:YES
Weight: 12g
Camera Size: 19*19mm (It comes with a holder to inscress the wide to 28mm)
Audio: Support
4:3 16:9 Switchable
Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)

VTX

XF5806 /5.8G 40CH 0/25/100/300mw VTX
Frequency: 5.8G
Channels: 40CH
Input voltage: 7V~26V
260mA(MAX)----600mW@12V
Support TBS Smart Audio
Formate: NTSC/PAL
Power supply: 5V output for Camera
Output power: 0mW/25mW/100mW/300mW switchable
Antenna connector: ipex
Dimensions: 25x20x4mm
Weight: 3.2g(Withour antenna)

Propeller

Racerstar 3040 3-blade
Meterial: PC
Blade: 3
Color: Transparent
Center thickness: 5.5mm
Center hole inner diameter: 5mm
Weight: 1.8g/pc

Package Included:

1 x LAL3 145mm 3 Inch 3-4S FPV Racing Drone

8 x Propeller
