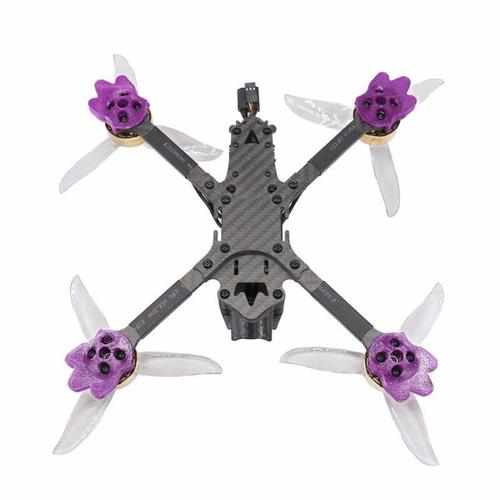

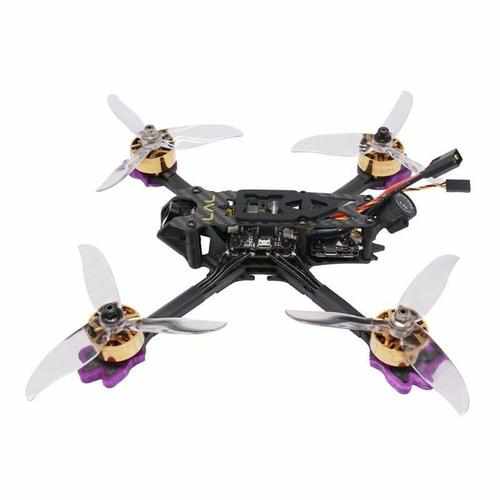

Eachine LAL5.1 Blheli_32 3-6S FPV Drone

Specifications:

Brand Name: Eachine

Item Name: LAL5 225mm 5.1 Inch 4K 4S FPV Racing Drone

Wheelbase: 225mm

Weight: 411.8g (without battery)

Package size: 270x270x160mm

Package weight: 1034.7g

Frame

Wheelbase: 225mm
Arm thickness: 5mm
X plate: 2mm
Bottom plate: 2mm
Upper plate: 2mm

Motor

Mode: 2507
KV: 2600
Idle current (IO/10V): 2.45A
No.of Cells(Lipo): 3-5S

Peak current: 40A
Max. power: 672W
Max. thrust: 1187g(4s/5“)
Configu-ration:12N14P
Internal Resistance: 0.0321Ω
Stator diameter: 25mm
Stator thickness: 7mm

Height: 19.5mm

Width: φ31mm

Shaft diameter: φ5mm

Motor mount hole size: M3

Recommend propeller: 5-6 Inch

Weight: 47g

ESC

50A 3-6S DSHOT1200 4 IN 1 ESC

Continue current: 50A

Burst current: 60A (10s)
Input voltage: 3-6S

Main control chip: STM32F051

Mos chip: TPH1R403

Firmware: Blheli_32

Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOT

MOS:5 * 6

Galvanometer: None

Weight: 13.5g

Installation hole: 30.5x30.5mm/3

Dimension: 49 *37mm

Flight Controller

EACHINE Customized LAL-F405 Bluetooth Flight Controller
STM32F405 Chip
MPU: MPU6000 (via SPI)
Input voltage: support 2-6S Lipo input
Onboard Bluetooth module, support APP configuration via smartphone
Firmware: MATEKF405
Onboard German BMP280 high precision barometer
Flight control onboard OSD chip, support DMA mode (use F4 MCU to control OSD), you can use BetaFlight to adjust soft
Piece adjustment parameter
Built-in 5v/2A; 10V/2A BEC output
Reserve MicroSD BlackBox
Reserve 5 serial ports and I2C interface for convenient GPS access (Bluetooth occupies TX5.RX5)
Supports multiple types of receivers (eg SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS, PPM, etc.
Type of receiver)
With LED programming signal output port, support programmable LED light strip, can be adjusted by flying control with color and flash mode
Has a voltage monitoring port (BAT) and a current monitoring port (CRT) to monitor battery voltage and current (requires additional power)
Flow meter)
With buzzer output port, support for external alarm buzzer for sound warning or notification of aircraft flight status
Onboard 10V BEC, providing a cleaner image display
All interfaces are available in socket and pad options for different people
Support for betaflight/inav racing firmware
Size: 37x37mm
Mounting hole: 30.5x30.5mm
Weight: 5.9g

Camera

Caddx TARSIER 4K V2
FOV: 4K F2.8, FOV150°16/9), FPV FOV165°(4/3)
Lens: DUAL Lens F2.8/12Mega
Audio: DUAL DIGATIL MIC
CPU: Dual core dual system
Sensor: 12M sensor,1/1.8INCH 1/2.9INCH
Main Resolution:
4K/30fps 16:9
2.7K/60fps 4:3
1440P 60fps/30fps 4:3
1080p/90fps,60fps,30fps 16:9
720P120fps 16:9
CAMERA Bitrate : 50kbps/66kbps
Video System: NTSC/PAL
ISO:OFF/100/200/400/800/1600
ANTI-SHAKE:Hardware anti-shake
Scene Mode: Auto/Personage/Scenery/Defog
Dimension CAMERA: 19x20mm / DVR:29x29mm(HOLE:20x20mm)
Weight : 18g

VTX

Model: Eachine TX805
Item name: FPV Transmitter VTX
Frequency: 5.8G
Channels: 40CH

Input voltage: 7V~24V

5V camera supply: 120mA(MAX)----25mW@12V

5V camera supply: 200mA(MAX)----200mW@12V

5V camera supply: 300mA(MAX)----600mW@12V

5V camera supply: 350mA(MAX)----800mW@12V

Extra features: Smart audio

Power supply: 5V output for Camera

Output power: 25mW/200mW/600mW/800mW switchable

Antenna connector: MMCX

Cable connector: Solder pads

Dimensions: 36mm*22mm*5mm,30.5 stackable hole

Weight: 8g(excluding antenna)

Antenna

5.8Ghz RHCP Antenna
Meterial: PC
Frequency: 5800MHZ

Center frequency: 5.8 GHz

Gain: 2.5 Dbi

Bandwidth: 500 MHz (5.5-6.0 GHz)
Matching: VSWR < 1.5 (at center frequency)
Radiation efficiency: 98%
Polarization: RHCP
Connector: MMCX

Propeller

Model: Racerstar 5145 3-blade
Meterial: PC
Blade: 3
Color: Transparent
Center thickness: 7mm
Propeller diameter: 129mm
Weight: 5.8g/pc

Feature:

Customized LAL-F405 Bluetooth Flight Controller

Caddx Tarsier V2 4K HD Camera

Powerful and smoothly

ND8 filter, Extend exposures and capture a range of creative effects

VTX power switchable 25mw~800mw

Compatible both for 4S Lipo/LIHV

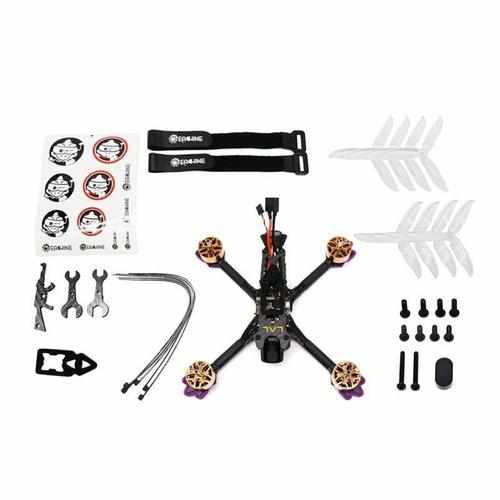

Package Included:

1 x 225mm Stretch X Frame

1 x LAL-F405 Bluetooth Flight Controller

4 x 2507 2600KV Brushless Motor

1 x 4 IN 1 50A 3-6S Blheli_32 Brushless ESC

1 x Caddx Tarsier V2 Cam

1 x Eachine TX805 25~800mW VTX

8 x Racerstar 5145 3-blade Propeller (4xCW, 4xCCW)
