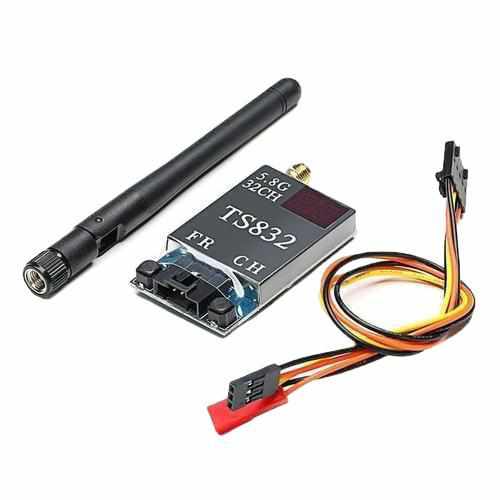

Eachine TS832 Boscam FPV 5.8G 32CH 600mW 7.4-16V Wireless AV Transmitt

Description:
Brand Name:Eachine
Item Name: TS832 transmitter
Antenna Gain: 2db
Frequency: 5.8G
Transmitting Power: 600mA
Power Input: 7.4-16V (3S Lipo suggested)
Video Format: NTSC / PAL Auto
Working Current: 220mA at 12V
Audio Bandwidth : 6.5M
Video Bandwidth: 8M
Weight: about 22g
Dimension: 54x 32x 10mm(excluding antenna)
Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug

Features:
32 channels choice to get the best transmitting quality.
Compatible with A,B,E and F frequency bands
Smaller size with lighter weight.
32 CH compatible to all FPV 5.8g receivers.
5.8G 600mW 32 Channels AV wireless FPV transmitter
Super small 200mA current for 600mW wireless transmitter power.
600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.

Package Included:
1 x cable
1 x antenna
1 x Eachine TS832 transmitter

FAQ:
It can compatible with 3-5 V camera ,but need to add a voltage step down module .

Eachine TS832 FPV 5.8G 32CH 600mw Wireless AV Transmitter
