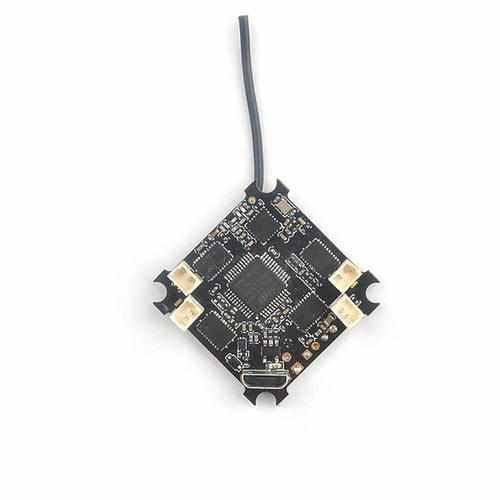

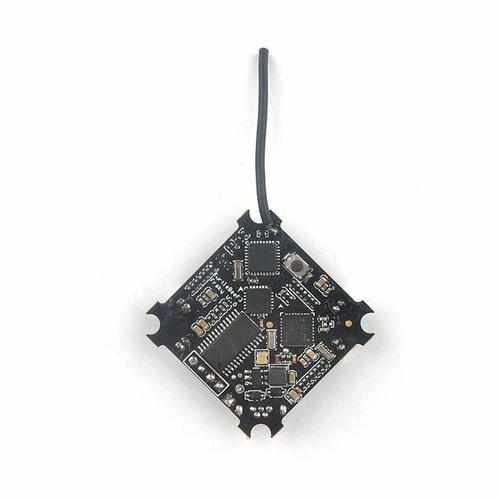

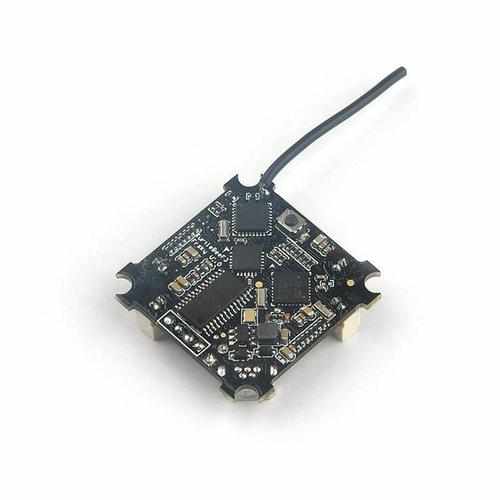

Eachine Turtlebee F3 Micro Brushed Flight Controller

$194.00

Specifications:Brand Name: EachineItem Name: Turtlebee F3 Brushed Flight controllerMCU: STM32F303CCT6Gyro& Accelerometer: MPU6000Working Voltage: 1S Lipo or LiHVFirmware Target: BetaflightMotor Driver: Texas Instruments DRV8850Continuous Current: 5A eachFor Peak Current: 8A eachMotor Socket: JST 1.25MM 2pinMounting Hole Distance: 25.45*25.45mmDiagonal Hole Distance: 36mmWhole...

  • Availability: In Stock
Type

Specifications:

Brand Name: Eachine

Item Name: Turtlebee F3 Brushed Flight controller

MCU: STM32F303CCT6

Gyro& Accelerometer: MPU6000

Working Voltage: 1S Lipo or LiHV

Firmware Target: Betaflight

Motor Driver: Texas Instruments DRV8850

Continuous Current: 5A each

For Peak Current: 8A each

Motor Socket: JST 1.25MM 2pin

Mounting Hole Distance: 25.45*25.45mm

Diagonal Hole Distance: 36mm

Whole Size: 29.2*29.2mm

Weight: 4g

Features:

- Support ACRO/ Stable/ ForHorizon/ Air multi fly mode

- Built-in Betaflight OSD

- Built-in 2.4g receiver (Frsky/Flysky/for DSM2 ForDSMX to choose)

- Built-in voltage and current detector alarm

- Dshot150 protocol ready, support Betaflight flip over when crashed.

Receiver Option:

1. Frsky protocol D8 Mode

2. Flysky AFHDS-2A protocol

3. ForSpektrum for DSM2/ForDSMX protocol

Compatible:

1.Frsky Receiver Support FRSKY X9D/X9D PLUS(D8 mode),and XJT (D8 Mode),DJT DFT DHT Transmitter.

2.Flysky Receiver Support Eachine i6, FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F, Turnigy Evolution Transmitter.

3.ForSpektrum for DSM2/ForDSMX Receiver Support Spectrum/JR(for DSM2/ForDSMX protocol) DEVO10/DEVO 7E(with deviation firmware).

Package Included:

1 x Turtlebee F3 Flight controller

3 x Power Cable

4 x Rubber Shoc k Ab sorber

4 x Screws
