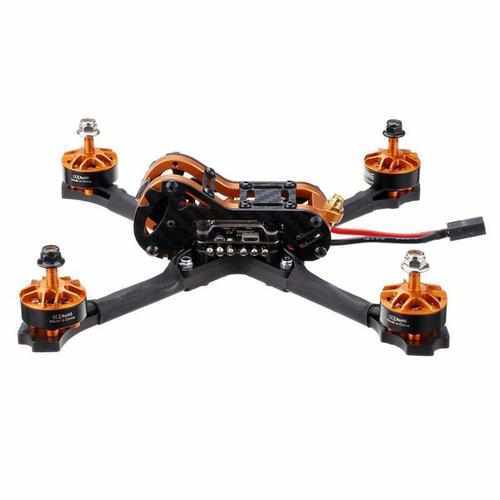

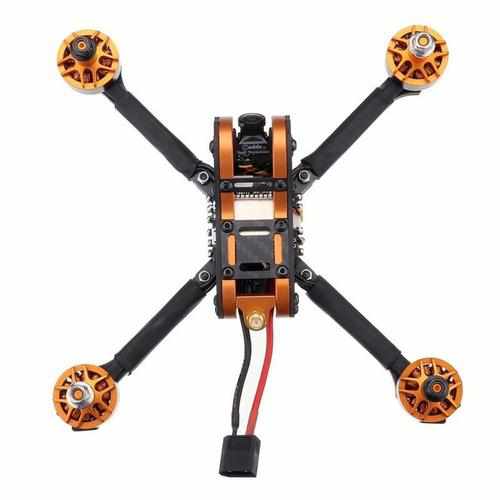

Eachine Tyro109 210mm 5 Inch FPV Drone

$813.00

Specification:Brand Name: EachineModel: Tyro109Version: PNP ( Without Receiver)Weight: 311gItem Specification210mm Frame Kit Item Specification 210mm Frame Kit Wheel base: 210mm Frame arm thickness: 5mm Bottom plate thickness: 2mm Side plate thickness: 2mm Frame kit material: 3K carbon fiber & 6065...

  • Availability: In Stock

Specification:

Brand Name: Eachine

Model: Tyro109

Version: PNP ( Without Receiver)

Weight: 311g

Item Specification

210mm Frame Kit

Item

Specification

210mm Frame Kit

Wheel base: 210mm

Frame arm thickness: 5mm

Bottom plate thickness: 2mm

Side plate thickness: 2mm

Frame kit material: 3K carbon fiber & 6065 aluminium

2206 2400KV Brushless Motor


KV: 2400KV

Idle current (Io/10V): 1.35A


Lipo cell: 3-5S


Weight: 31g


Max continuous current: 35A


Max continuous power: 560W


Max thrust: 1180g (4S/5")


Configu-ration: 12N/14P


Motor resistance (RM): 0.0536 Ω


Stator diameter: 22mm


Stator thickness: 6mm


Motor diameter: 27.7mm


Motor body length: 19.2mm


Overall shaft length: 34.2mm


Prop adapter shaft: M5


Bolt holes spacing: 16mm


Bolt thread: M3


Propeller: 5-6 inch



4 IN 1 30A BLHeli_S ESC


Continuous current: 30A

Pe ak Current: 40A(10S)

Input voltage: 2-5S

BEC: 5V 2A BEC

Main control chip: 48Mhz EFM8BB2

Firmware: BLHeli_S supports Dshot600

MOS: 5*6

Customized F4 Flight Controller


Main control chip: STM32F405

Sensor: ICM20602 6-axis

Power supply: 5V

Integrated OSD

Onboard LC filter

PID cycle rate & gyro refresh rate up to 32Khz

Supports BetaFlight / inav racing firmware

Caddx Turbo Eos2 1200TVL Camera


FOV: 160°

DNR: 2DNR

WDR: D-WDR

Lens: 2.1mm

TV System: NSTC

Latency: min 3ms

Resolution: 1200TVL

Illumination: 0.005LUX

Schutter: Rolling Schutter

Power Input: 3.3V-9V

Image Sensor: 1/3 inch COMS

Aspect Ration: 16:9 / 4:3 choosable

Net weight: 5g

Dimension: 14 * 14 * 16mm

Package weight: 41g

Package dimension: 66 * 66 * 32mm

Xf5804 5.8G 40CH 0mW/25mw/200mw/600mw switchable VTX


Output power & transmission distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW

Transmitting power: 0mW/25mW/200mW/600mW

Full video format: NTSC /PAL

Input voltage & power dissipation: 7V~24V, +12V/260mA@600mW

Size: 20*30*9mm

Weight: ≤7g(except antenna)

With output power self-check function.

Nixie tube SCAN: frequency point (1-8), frequency band (A-E), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw)

5040 5 Inch 4-Blade Propeller


Material: PC

Mounting hole: 5mm

Center thickness: 8mm

Color: Green & Yellow & Red and Transparent White


Quantity: 4 CW + 4 CCW ( One Pair in each color)

Battery

Not included
Recommend 3-5S
