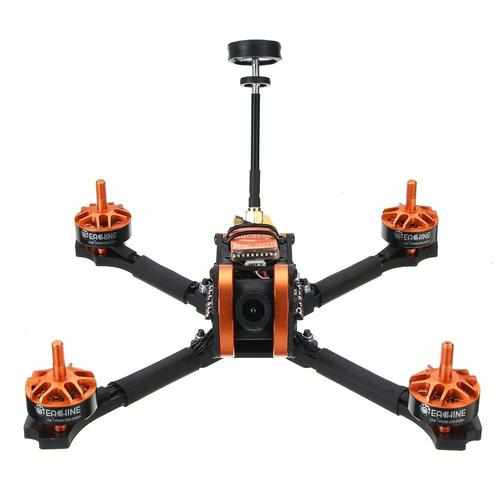

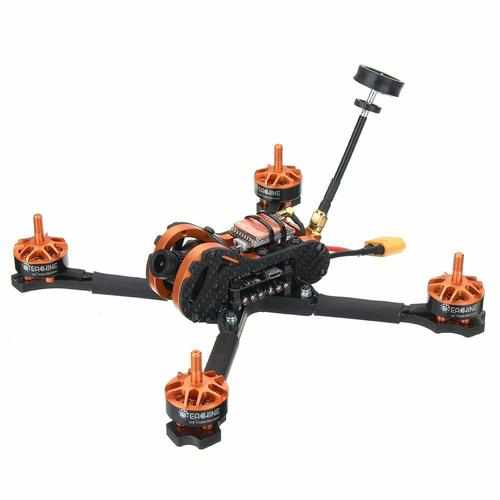

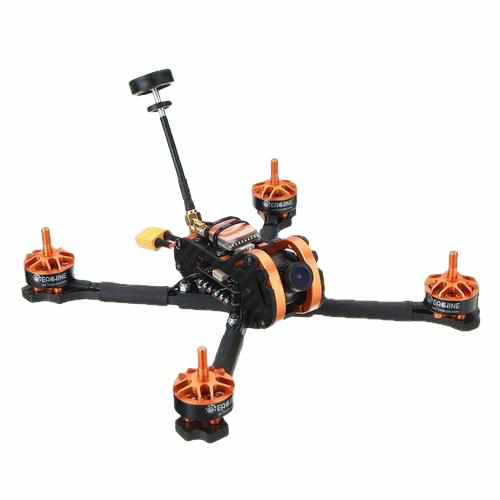

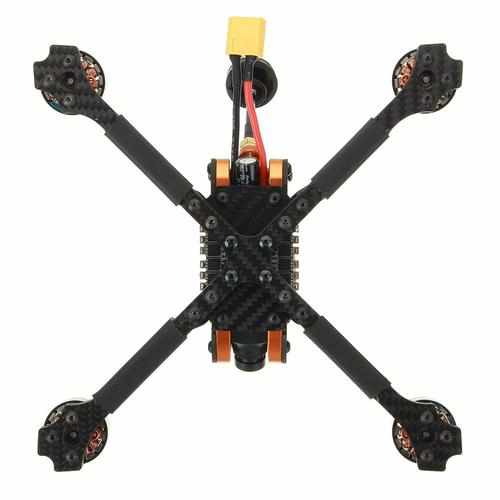

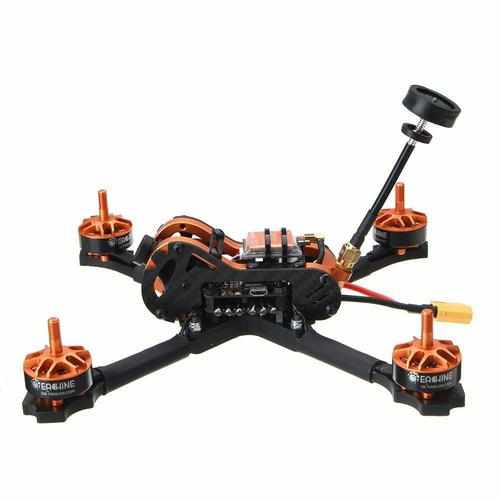

Eachine Tyro99 210mm FPV Racing RC Drone

Item

Specification

210mm Frame Kit

Wheel base: 210mm

Frame arm thickness: 5mm

Bottom plate thickness: 2mm

Side plate thickness: 2mm

Frame kit material: 3K carbon fiber & 6065 aluminium

2206 2150KV Brushless Motor

Motor KV: 2150RPM/V

Idle current (Io/10V): 1.26A

Lipo cell: 3-5S

Weight: 31g

Max continuous current: 31A

Max continuous power: 496W

Max thrust: 1050g (4S/5")

Configu-ration: 12N/14P

Motor resistance (RM): 0.0572 Ω

Stator diameter: 22mm

Stator thickness: 6mm

Motor diameter: 27.7mm

Motor body length: 19.2mm

Overall shaft length: 34.2mm

Prop adapter shaft: M5

Bolt holes spacing: 16mm

Bolt thread: M3

Propeller: 5-6 inch

4 IN 1 30A BLHeli_S ESC

Continuous current: 30A

Burst Current: 40A(10S)

Input voltage: 2-5S

BEC: 5V 2A BEC

Main control chip: 48Mhz EFM8BB2

Firmware: BLHeli_S supports Dshot600
MOS: 5*6

Customized F4 Flight Controller

Main control chip: STM32F405

Sensor: ICM20602

Power supply: 5V

Integrated OSD

Onboard LC filter

PID cycle rate & gyroscope refresh rate up to 32Khz

Supports BetaFlight / inav racing firmware

700TVL CMOS Camera

Case size: 25mm*25mm

Weight: 9.5g

Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP)

Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP)

Signal system: PAL/NTSC switchable

Resolution ratio(horizontal center): 700TVL

Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB

White balance: on/off optional

Exposure mode: electron exposure

Electronic shutter: 1/50(1/60) - 1/100000 S

Gamma correction: 0.45/1.0

Synchronization method: inter-sync

Camera lens: standard 2.8mm

Lens operating voltage: DC12V (wide voltage, measured can work normally at 7.5-13V)

Working current: 70mA (low power consumption)

Working temperature: -20℃~-60℃

Humidity: 0%~98%

5.8G 40CH 0mW/25mw/200mw/600mw switchable VTX

Output power & transmission distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW

Transmitting power: 0mW/25mW/200mW/600mW

Full video format: NTSC /PAL

Input voltage & power dissipation: 7V~24V, +12V/260mA@600mW

Size: 20*30*9mm

Weight: ≤7g(except antenna)

With output power self-check function.

Nixie tube SCAN: frequency point (1-8), frequency band (A-E), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw)

Racerstar 5040 2 Blade Propeller

Material: PC

Mounting hole: 5mm

Quantity: 2 CW & 2 CCW

Color: blue, red, yellow, purple, white (Delivery color randomly

Battery

Not included
Recommend 3-5S

Package included:

1 x 210mm frame kit

2 x 2206 2150KV brushless motor CW

2 x 2206 2150KV brushless motor CCW

1 x 4 IN 1 30A BLHeli_S ESC

1 x Customized F4 flight controller

1 x 700TVL CMOS camera

1 x 5.8G 40CH 0mw/25mw/200mw/600mw switchable VTX

2 x Battery strap

10 x Racerstar 5038 2 blade propeller CW

10 x Racerstar 5038 2 blade propeller CCW
