SpecificationModel : VTX03S Weight : 2.75gDimension : 18.6mm*16.3mmOutput Power : 0/25/50/100/200mw SwitchedChannel : 40CHFrequency : 5865-5917MHzSupport Format : N/PAudio Carrier : NODisplay : LED DisplayAntenna : IPEX Power Input : DC3.3V-5VPower Output : DC5VCable Connections Red(3.3V-5V)Black(GND)Green(smartaudio)Red(5VCAM)Black(GND)Yellow(Video In)FeaturesMini and lightSmartaudio FunctionPITmode, no...
Specification
Model : VTX03S
Weight : 2.75g
Dimension : 18.6mm*16.3mm
Output Power : 0/25/50/100/200mw Switched
Channel : 40CH
Frequency : 5865-5917MHz
Support Format : N/P
Audio Carrier : NO
Display : LED Display
Antenna : IPEX
Power Input : DC3.3V-5V
Power Output : DC5V

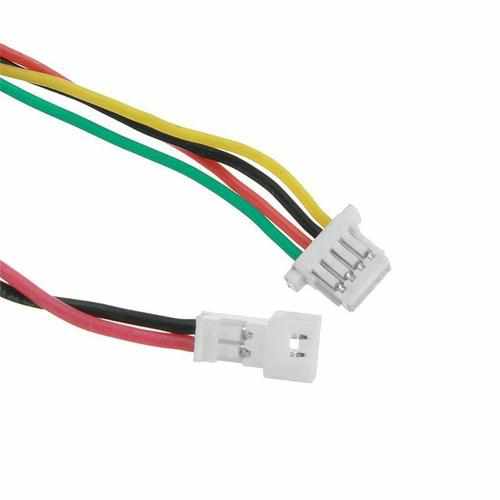

Cable Connections
Red(3.3V-5V)
Black(GND)
Green(smartaudio)
Red(5VCAM)
Black(GND)
Yellow(Video In)
Features
Mini and light
Smartaudio Function
PITmode, no signal interference
Adopt button instead of toggle, convenient operation
1S lipo power supply
Power Off Memory
Package Included
1 x Eachine VTX03S Transmitter
