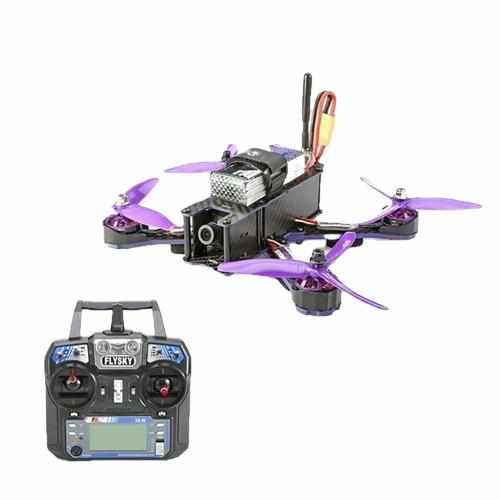

Eachine Wizard X220 FPV Drone

Item

Specification

Features

Eachine Wizard X220

Wheelbase: 220mm
GMachine arm: 4mm carbon fiber
Flying times: 12 minutes
Weigh: 484g (with battery)
Take off weigh: 535g
Package size: 440 x 300 x 100mm
Package weigh: 1325g

Compatible with max 5 inch propeller
Compatible with 2206, 2208 motor
Can be used with 4S/3S battery
With Seft-protection function
With direction indicator LED
Inclined motor base design, fast speed
Removable protection motor base

Eachine MN2204 2300KV Motor

KV : 2300
MAX thrust: 440g
Length: 32.2mm
NO.OF cell : 2-4S
Diameter : 27.9mm
Framework : 12N14P
Shaft : 3mm
Propeller : 5 inch
Weight: 25g

Eachine 20A BLHELI_S ESC

Item name : 20A BLHELI_S ESC
Con.Current : 20A
Pe,ak Current(10s) : 25A
Input Voltage : 2-4S
BEC : No
Programming : YES
Firmware : Blheli_S
Weight :7.9g
Size(PCB) : 27*12mm

700TVL Camera

Power supply : 3.6-5.5V (powered off TX)
Power consumption : 60mA @5V
Imager : 1/3” CMOS, 700TVL
Angle : 127° diagonal FOV, 110° horizontal FOV
FPV tuned light handling
System : PAL
Lens : 2.8mm IR coated
FOV : 127°diagonal 110°horizontal (ideal for fixed camera)
Operation temperature : -20 to 70°C
Square : 29 X 29 X 23.5mm
Lens extrude (LxDia) : 15mm X 14mm
Weight : 12g

5.8G 200mw 48ch Transmitter

Item NO.: TS5823S
Modulate : Wideband FM Modulate
Video Format : NTSC/PAL
Output Impedance : 50 Ohm
Output Power : 23-24dBm
Channel:48 CH
Operating Voltage : 7V-24V
Supply Current : 190mA
Operating Temperature : -10~85℃
Video Ba,nd Width : 0~8.0 MHz
Audio Carrier Frequency : 6.5 MHz
Video Input Level : 0.8~1.2 Vp-p
Video Input Impedance : 75 Ohm
Audio Input Level : 0.5~2.0 Vp-p
Audio Input Impedance : 10K Ohm
Connector: RP-SMA Female (Inner needle)
Antenna Connector: RP-SMA Male (Inner hole)
Dimension: 40mm x 23mm x 8mm
Weight: 7.3g

Flight controller

NAZE32 6DOF REV6

FlySky I6 2.4G 6CH remote control

Channels : 6 Channels

Model type : Glider/Heli/Airplane

RF range : 2.40-2.48GHz

Bandwidth : 500KHz

Ba,nd : 142

RF power : less than 20dBm

2.4ghz system : AFHDS 2A and AFHDS

Code type : GFSK

Sensitivity : 1024

Low voltage warning : less than 4.2V

DSC port : PS2; Output:PPM

Charger port : No

ANT length : 26mm*2 (dual antenna)

Weight : 392g

Power : 6V 1.5AA*4

Display mode : Transflective STN positive type, 128*64 dot matrix VA73*39mm, white backlight.

Size : 174x89x190mm

On-line update : yes

Color : Black

Certificate : CE0678, FCC

Model memories : 20

Control range: 500m

Flysky 2.4G 6CH FS-iA6B Receiver

Channel: 6

Frequency Range: 2.4055--2.475GHZ

Ba,nd Width Number: 140

Transmitting Power: ≤ 20dBm

RF Receiver Sensitivity: -105dbm

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Encoding: GFSK

Antenna Length: 26mm * 2 (dual antenna)

Input Power: 4.0-6.5V DC

Dimension: 47 x 26.2 x 15mm

Weight: 14.9g

Color: Black

i-Bus Interface: Yes

Data Acquisition Interface: Yes

Model Type: Airplane / Glider / Helicopter

Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

Battery

Capacity(mAh) : 1500

Cells (s): 3

Weight (g): 120

Length(mm): 89

Width(mm): 19

Height(mm): 35

Connector: XT60

Kingkong 5040 3-Blade Propeller

Color: purple
Quantity: 10 Pairs
Mounting Hole: 5mm
Weight: 137g
Size: 140*140*65 mm

Eachine Wizard X220 English manual.

Package included:

1 x Eachine V-tail 210 FPV Drone

1 x Flysky I6 2.4G 6CH remore control

1 x Flysky iA6B receiver

2 x Eachine MN2204 KV2300 brushless motor CW

2 x Eachine MN2204 KV2300 brushless motor CCW

4 x Eachine 20A BLHELI_S ESC

10 x Kingkong 5040 3-blade propeller purple CW

10 x Kingkong 5040 3-blade propeller purple CCW

1 x NAZE32 6DOF REV6

1 x 700TVL camera

1 x 5.8G 48CH 200mw transmitter

1 x 3S 11.1V 1500mah 25C XT60 battery

1 x B3 charger

1 x Antenna

1 x Battery strap

2 x Wrench
