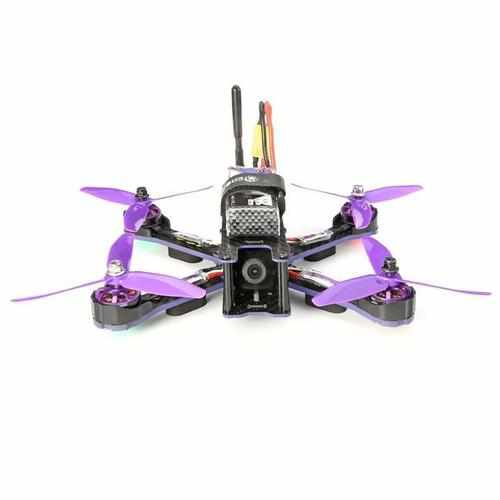

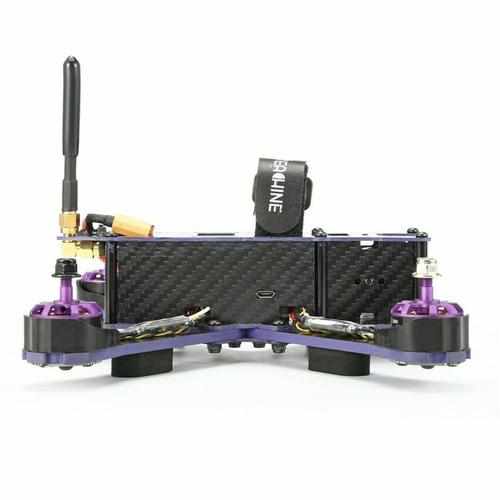

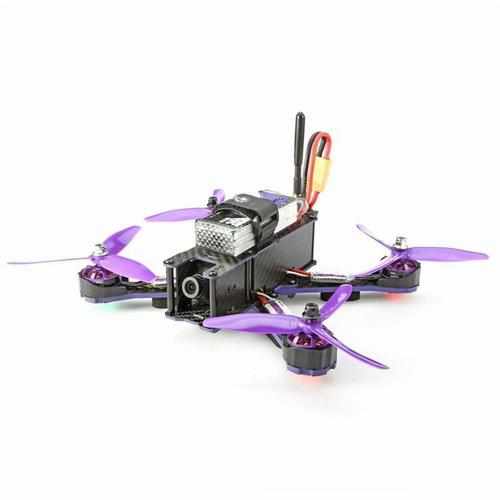

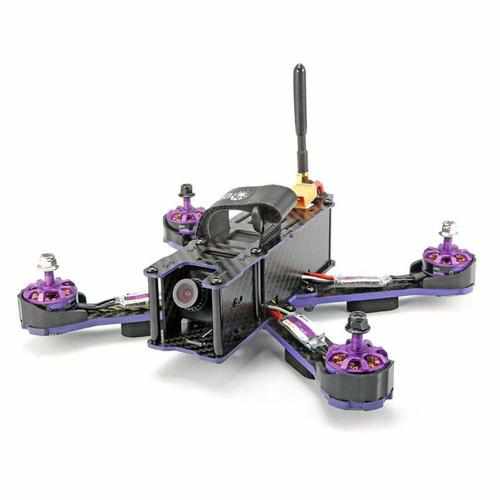

Eachine Wizard X220 FPV Racing Drone

Specification

Eachine Wizard X220

Wheelbase: 220mm

GMachine arm: 4mm carbon fiber

Flying times: 12 minutes

Weigh: 364g (without battery)

Take off weigh: 535g

2205 2300KV Motor

KV : 2300

Propeller : 5 inch

Eachine 20A BLHELI_S ESC

Item name : 20A BLHELI_S ESC

Con.Current : 20A

Input Voltage : 2-4S

BEC : No

Programming : YES

Firmware : Blheli_S

Weight :7.9g

Size(PCB) : 27*12mm

700TVL Camera

Power supply : 3.6-5.5V (powered off TX)

Power consumption : 60mA @5V

Imager : 1/3” CMOS, 700TVL

Angle : 127° diagonal FOV, 110° horizontal FOV

FPV tuned light handling

System : PAL

Lens : 2.8mm IR coated

FOV : 127°diagonal 110°horizontal (ideal for fixed camera)

Operation temperature : -20 to 70°C

Square : 29 X 29 X 23.5mm

Lens extrude (LxDia) : 15mm X 14mm

Weight : 12g

5.8G 200mw 48ch Transmitter

Item NO.: TS5823S

Video Format : NTSC/PAL

Output Impedance : 50 Ohm

Output Power : 23-24dBm

Channel:48 CH

Operating Voltage : 7V-24V

Supply Current : 190mA

Operating Temperature : -10~85℃

Video Width : 0~8.0 MHz

Audio Carrier Frequency : 6.5 MHz

Video Input Level : 0.8~1.2 Vp-p

Video Input Impedance : 75 Ohm

Audio Input Level : 0.5~2.0 Vp-p

Audio Input Impedance : 10K Ohm

Connector: RP-SMA Female (Inner needle)

Antenna Connector: RP-SMA Male (Inner hole)

Dimension: 40mm x 23mm x 8mm

Weight: 7.3g

Kingkong 5040 3-Blade Propeller

Color: purple

Quantity: 10 Pairs

Mounting Hole: 5mm

Weight: 137g

Size: 140*140*65 mm

Features

Compatible with max 5 inch propeller

Compatible with 2206, 2208 motor

Can be used with 4S/3S battery

With Seft-protection function

With direction indicator LED

Inclined motor base design, fast speed

Removable protection motor base

Package included:

1 x Eachine Wizard X220

2 x 2205 KV2300 brushless motor CW

2 x 2205 KV2300 brushless motor CCW

4 x Eachine 20A BLHELI_S ESC

10 x Kingking 5040 3-blade propeller purple CW

10 x Kingking 5040 3-blade propeller purple CCW

1 x F3 6DOF flight controller

1 x 700TVL camera

1 x 5.8G 48CH 200mw transmitter

1 x Antenna

1 x Battery strap

2 x Wrench
