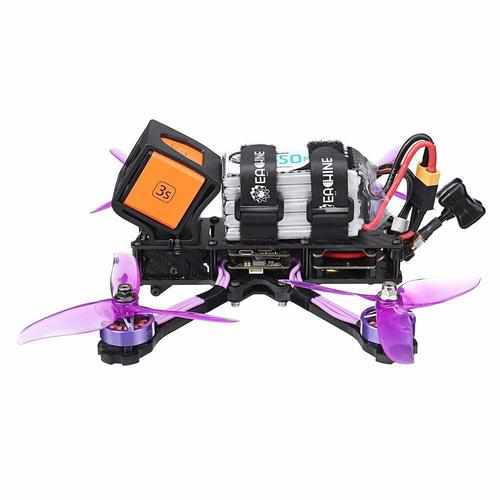

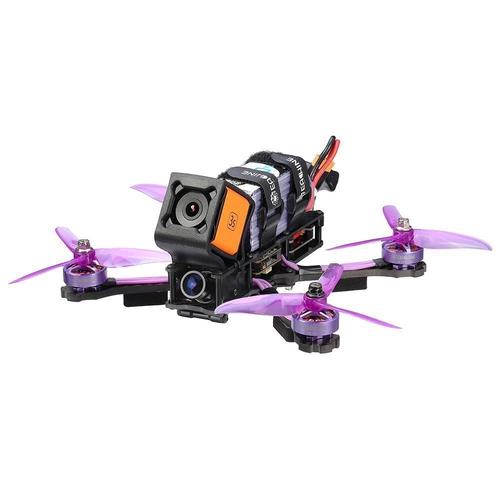

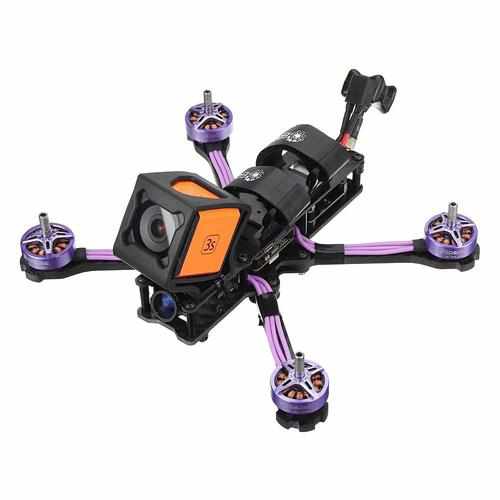

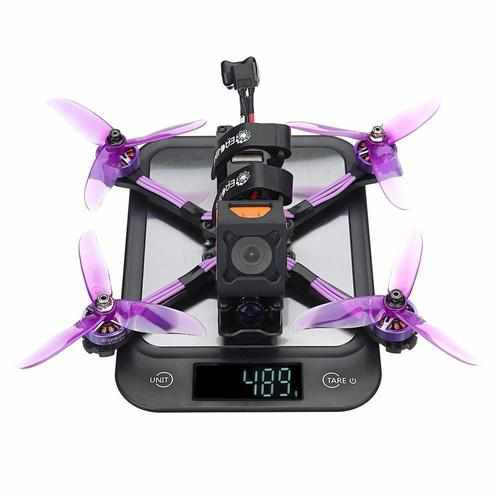

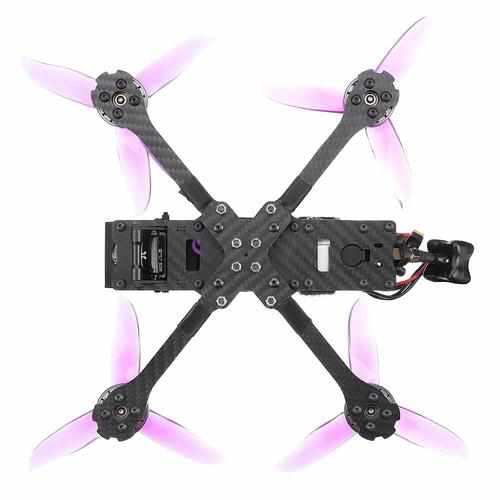

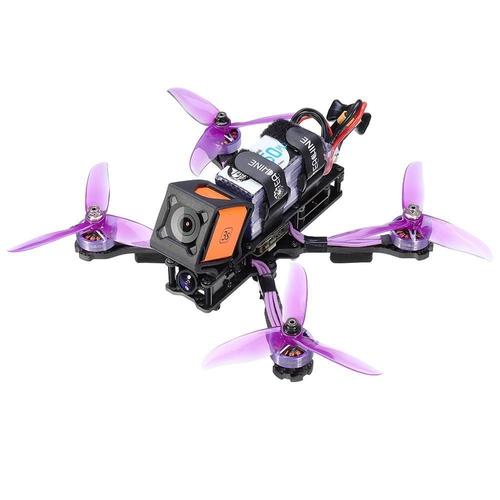

Eachine Wizard X220HV 6S FPV Racing RC Drone

click here

Item

Specification

X220HV Frame Kit

Wheel base: 220mm

Upper plate thickness: 2.0mm

Frame arm thickness: 5.0mm

Bottom plate thickness: 3.0mm

X plate thickness: 1.5mm

Camera side plate thickness: 1.5mm

Camera standoffs: M3*28mm 1 PC

Frame standoffs: M3*20mm 8 PCS

2306 1650KV 3-6S Brushless Motor

Motor KV: 1650 RPM/V

Idle current(Io/10V): 1.05A

Lipo cell: 3-6S

Weight: 35g

Max continuous current: 36A

Max continuous power: 860W

Max thrust: 2350g

Configu-ration: 12N/14P

Stator diameter: 23mm

Stator thickness: 6mm

Motor diameter: 29mm

Motor body length: 18.4mm

Overall shaft length: 32.9mm

Prop adapter shaft: M5

Bolt holes spacing: 16mm

Bolt thread: M3

Propeller: 5-6 inch

45A 4 In 1 BLHeli_S ESC 2-6S

Integrated PDB

Working voltage: 2-6S Lipo

Continuous working current: 4*45A

Peak current: 4*50A (6S)

Main control chip: 48Mhz EFM8BB2

Firmware: BLHeli_S Supports Dshot600

MOS: 5*6

Customized F4 Flight Controller Built-in OSD

Main control chip: STM32F405

Sensor: MPU600 6 axes

Power supply: 5V

Integrated OSD

LC filter on board

Supports BetaFlight / inva running firmware

Foxeer Arrow Mini Pro 2.5mm 650TVL Camera

Solution: 1/3" ForSony SUPER HAD II CCD + Nextchip 2040 DSP

Pixel: PAL: 976(H)x494(V)

TV system: PAL

Resolution: 600TVL(color) 650TVL(B&W)

Synchronization: internal

Min.illumination: 0.01Lux

WDR: support

OSD programming board: support

White Dot repair: support

DNR: 2D DNR

Camera title: support

Image adjustment: support

OSD: Edit name, power, flying time

Input power: 5-40V

Storage temperature: -40℃~60℃

Working temperature: -10℃~50℃

Power consumption: 70mA

Low voltage alarm: support

Preset mode: DEF, VIVID, SUNNY, CLOUDY, LED TR, USR1

Size: 21.8x21.8mm

Weight: 8.7g(excluding bracket)

5.8G 40CH 0mW/25mw/200mw/600mw VTX Switchable

Output power and transmission distance: ≥0.5km@25mW, ≥1km to 200mW, ≥2km to 600mW

Transmission power: 0mW / 25mW / 200mW / 600mW

Full video format: NTSC / PAL

Input voltage and power dissipation: 7V ~ 24V, + 12V / 260mA @ 600mW

Size: 36*36*6mm

Weight: ≤ 7g (excluding antenna)

With output power self-check function.

Nixie tube SCAN: frequency point (1-8), frequency band (AE), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw)

SpeedyBee Bluetooth Module

Support Betaflight configurator

Speedybee App: iOS 10.0+, iPad3; Androd 4.3+

Output power: 0dBM

Sensitivity: -94dBM

External interface: BROADCAST SWITCH, TX, RX, 3-5V DC Input, GND

Transmission speed: Bidirectional 1K/S

Bluetooth protocol: Bluetooth Specification V4.0 BLE

Transmission distance: 30 meters

Frequency range: 2400MHz-2483.5MHz (2.4G ISM Band)

Baud rate: 2400, 4800, 9600, 14400, 19200(default), 28800, 38400, 57600, 76800, 115200, 230400

Working voltage: 3.3V-5.0V

Working current: 8.3mA-10mA

Weight: 1.4g

Size: 27*15*4.5mm

110DB BB Alarm Buzzer

Working voltage: 5V

Standby battery: lipo 4.2V 100mah

Loudness: 110DB

Size: 36 * 36mm

Weight: 8g

Dalprop Cyclone T5046C propeller

Size: 5046 5x4.6

Mounting hole: 5mm

Color: transparent purple & transparent white

Quantity: 4 pairs (2 pairs of transparent purple + 2 pairs of transparent white)

Lipo Battery

Not included

Recommend 4-6S 1500mah-1800mah

Package included:

1 x X220HV frame kit

2 x 2306 1650KV brushless motor CW

2 x 2306 1650KV brushless motor CCW

1 x 4 IN 1 45A BLHeli_S ESC

1 x Customized F4 flight controller Built-in OSD

1 x Foxeer arrow mini pro 2.5mm 650TVL camera

1 x 5.8G 40CH 0mW/25mw/200mw/600mw VTX Switchable

1 x 110DB BB alarm buzzer

1 x SpeedyBee bluetooth module

1 x 45mm RP-SMA male antenna RHCP

2 x 200*20mm battery strap

1 x 30° camera mount compatible with Runcam 3 3S Gopro session

2 x Dalprop cyclone T5046C transparent white CW

2 x Dalprop cyclone T5046C transparent white CCW

2 x Dalprop cyclone T5046C transparent purple CW

2 x Dalprop cyclone T5046C transparent purple CCW

10 x 2.5*100mm nylon strap black
