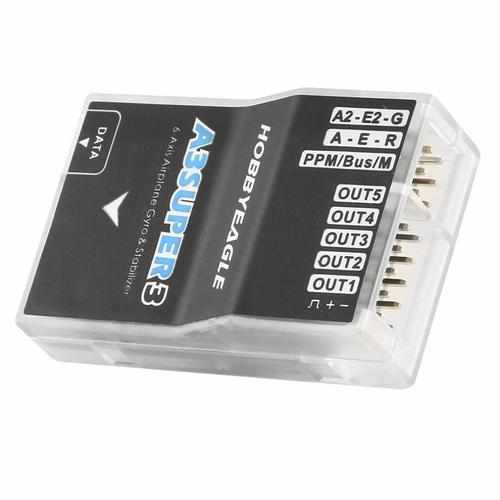

EAGLE A3 Super III V2 6-axle Gyro / Flight Controller

Features:

Material :ABS

Upgrade Parts/Accessories :Frame

Four-wheel Drive Attributes :Motors

For Vehicle Type :Helicopters

Technical parameters :Value 6

Brand Name :None

RC Parts & Accs :Flight Controller

Remote Control Peripherals/Devices :Motor

Tool Supplies :Assembled class

Model Number :A3 Super 3

The A3 Super 3 is a high-performance and functional 6-axis gyro and stabilizer designed for R/C airplanes. This gyro can be used with nearly any size and type of R/C airplanes and it will make the flying even easier and comfortable.

32-bit MCU, high-precision 6-axis MEMS sensor, improved hardware platform and new firmware solution provide more reliable performance.

6 flight modes, including Gyro-Off mode, Normal mode, Trainer mode, Atti-Lock mode, Auto-Level mode and Auto-Hover mode.

6-position flight mode switching supported.

Compatible with most standard receivers, standard PPM single-line receivers and Futaba's S.Bus and S.Bus 2 receivers.

7 wing types, dual aileron, dual elevator, delta-wing and v-tail supported.

External LED module, integrated with data interface, flat or upright various mounting orientations supported.

Sub trim and travel limit settings for servos, separate stick Rate and EXP settings for each mode.

Pass-through function for [A2] and [E2] channels.

Customization hardware and software low pass filters for gyroscope and accelerometer, enable you to optimize the performance of the gyro as you wish.

Quick setup supported by using the programming card, firmware upgrade able.

Description:

Supports For Windows XP, For Windows 7, For Windows 8 and For Windows 10 (32 or 64 bit).

If the installation fails, please install Microsoft .NET Framework 4 first.

Install the USB driver (CP210x_VCP) before operating the config utility.

Specifications:

Material: ABS

Color: black

Size: 43.9 x27.4 x13.mm

Main Controller: 32-bit MCU

Sensor: High-precision 3-axis gyroscope and 3-axis accelerometer

Gyroscope Scale Range: ±2000 dps

Accelerometer Scale Range: ±4g

PWM Output: 920uS ~ 2120uS with 1520uS center length / 50 ~ 333Hz

Input Voltage: 4.8V ~ 8.4V

Operating Temperature: -10 ℃ ~ 50 ℃

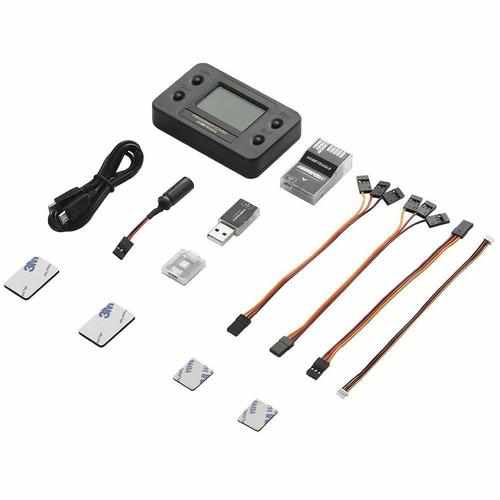

Package included:

1 x A3 Super 3 Axle Airplane Gyro Gyroscope Flight Controller Stabilizer

1 x Voltage Protector

1 x Programming Card

1 x USB Cable

1 x USB Adapter

1 x External LED module +1 x Connecor Cable

3 x Receiver Wires

4 x Tape Stickers
