ELF 88mm Quadcopter Frame

ELF 88mm FPV Racing Frame

Wheelbase: 88mm

Material: 3K carbon fiber

Bottom board: 2mm

Upper board: 1.5mm

Weight: about 10g

Features:

Mini racing drone, just palm-sized, no trouble in racing indoor and outdoor.

Suitable for mini flight controller with 20mm hole pitch, reserve 3mm hole pitch, 2-3mm screw hole are both ok.

The version is Kit version without any electric devices.

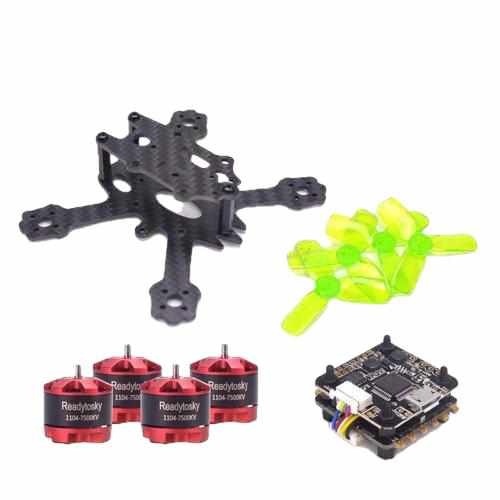

Recommended configuration:

Flight Controller: mini F3 or F4 flytower board

Motor: 1103 or 1104 motor as in my store showed

Props: Max 2 inch 2030 propeller

25A 4 in 1 ESC:

1. Input voltage: 2-4S LiPo/2-4S HV LiPo

2. BEC: OPTO (none)

3. Single ESC Constant working current: 25A (maximum current:30A 5 seconds)

4. Four-in-one ESC size: 31*33.5mm (including pad and protruding point maximum size)

5. Four-in-one ESC weight: 4.4g

8. Processor: SILABS EFM8BB21F16G

9. Mos: AON7202

10. Driver: A new generation of three-in-one MOS driver
