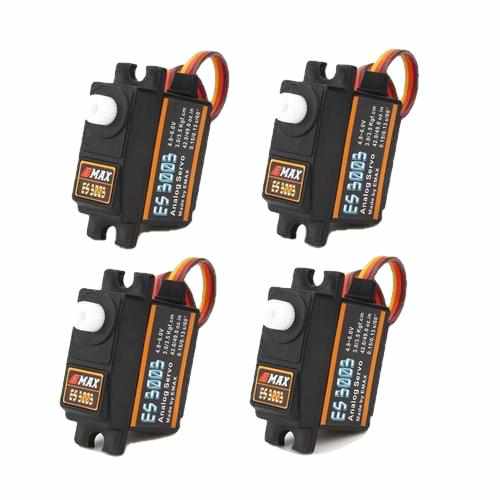

EMAX ES3003 23T Plastic Gear Analog Servo

$104.00

Specifications: Brand Name EMAX Item Name ES3003 Operating Voltage 4.8V - 6.0V STD Direction Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec Stall Torque 4.8V 3kg.cm Max Operating Speed 4.8V 0.15 sec/60° at no load Stall Torque 6.0V...

  • Availability: In Stock
Type

Specifications:

Brand Name EMAX

Item Name ES3003

Operating Voltage 4.8V - 6.0V

STD Direction Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec

Stall Torque 4.8V 3kg.cm Max

Operating Speed 4.8V 0.15 sec/60° at no load

Stall Torque 6.0V 3.5kg.cm Max

Operating Speed 6.0V 0.13 sec/60° at no load

Size 28.45x13.00x31.10mm

Weight 17g

Plug Available FUT;JR

Flower Head 23T

Maximum Travel 145°±10° (700-2300μ sec)

Others Bearing; Plastic; Analog

Package Included:

4xEMAX ES3003 17g Servo
