F3T6DOF SPI 6000 MPU F3 Flight Controller With BEC

$63.00

Specification: Item name: Teeny F3 6DOF flight controller STM32 F303 MCU Firmware version: Betaflight 3.1 ESC Dshot protocol compatible(Need not modify) SBUS/PPM/DSM2/DSMX input (Pin headers) 4PWM output (Pin headers) Super Tiny Only 20x20mm, mount holes 15x15mm M2 screw SPI Sensor...

  • Availability: In Stock

Specification:

Item name: Teeny F3 6DOF flight controller

STM32 F303 MCU

Firmware version: Betaflight 3.1

ESC Dshot protocol compatible(Need not modify)

SBUS/PPM/DSM2/DSMX input (Pin headers)

4PWM output (Pin headers)

Super Tiny Only 20x20mm, mount holes 15x15mm M2 screw

SPI Sensor MPU6000

2-4S Lipo Direct power

5V 1A BEC

3.3V output for spectrum Satellite Receiver

Firmware target: Omnibus

Build in PDB

LED Strip solder pad ready

Buzzer solder pad ready

Weight: only 1.6g

Best for 60mm-80mm brushless frame

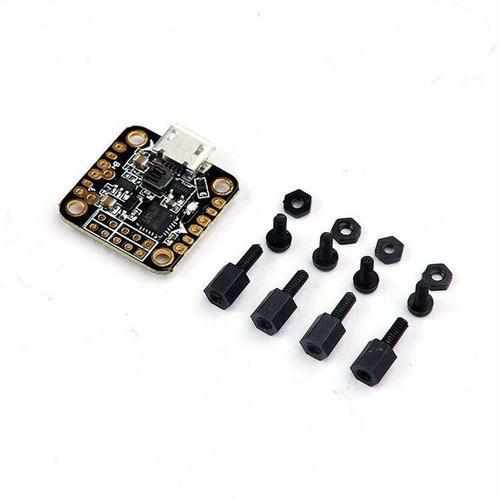

Package included.:

1x Flight controller

4x M2 Screw

4x M2 nuts

4x M2*5+5 Nylon column
