F450 450 Quadcopter Multicopter Frame Kit

F450 frame description

Features:

Built from quality glass fiber and polyamide nylon.

Integrated PCB connections for direct soldering of your ESCs

Pre-threaded brass sleeves for all of the frame bolts.

Colored arms for orientation to keep you flying in the right direction.

Large mounting tabs on main frame bottom plate for easy camera mounting.

Easy assembly.

Specs:

Width: 450mm

Height: 55mm

Weight: 280g (w/out electronics)

Motor Mount Bolt Holes: 16/19mm

G.Weight: 395g

Wheelbase: 17.7in/450mm

Net weight: 272g

APM V2.8.0 description:

- This version eliminates the 1.0mm 6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C external compass interface.

- Put DF13-5P GPS interface with external compass interface, convenient for the connection of GPS and externalcompass.

- V2.52 I2C interface changes to multifunctional MUX interface

- Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is effectively avoided

- V2.52 version 3.5V power supply adopts IPS79133, 6V withstand voltage, output current 100mA, need to supply power for six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing the possibility of Bad Gyro health

APM V2.8.0 Flight Controller

- Needle: staight

- Power supply: LP2985-3.3

- Max voltage: 16V

- Add a 47uF tantalum capacitor

- Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output)

Jumper cap choose:

- Built-in compass: plug the jumper cap in the MAG pin header.

- External compass: pull up the jumper cap from the MAG pin header.

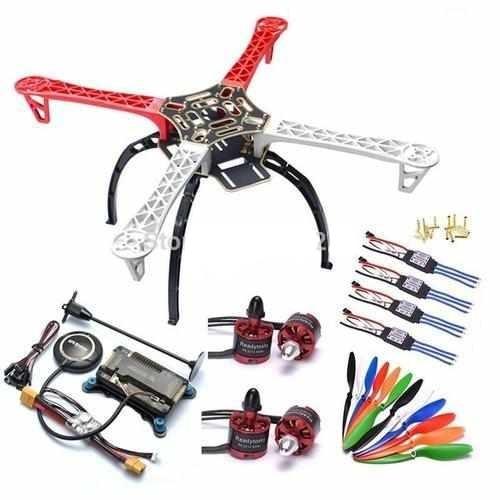

Package Included:

1pcs F450 Quadcopter Frame w/ landing gear

4pcs 2212 920kv / 1000kv Motor

4pcs 30A Simonk esc

1pcs APM2.8 Board with Case ( For the apm board , we have both straight pin and side pin ones , if you have a request about it , please leave us a message , or we will send the straight pin one as default )

1pcs shock absorber

1pcs 7M gps with gps stand holder

1pcs Power Module

5pcs 10cm servo cables

8pcs 1045 Propeller ( Send the color at random )

12 Pairs 3.5mm Banana Connector
