F450 Frame Kit PIXHAWK 2.4.8 Flight control

40A brushless ESC

Specifintegrated circuitation:

Brand:readytosky

Cont.Current:40A

Burst Current(10sec):60A

BEC:None

Lipo:2-6S

Programming:Timing(high/middle)

Weight:26g

Size:68x25x8.7mm

Plug:Φ3.5mmx3

Usage:RC Multintegrated circuitopter

APAC means Asia-Pacifintegrated circuit Version,the offintegrated circuitial ESC sold in Asia-Pacifintegrated circuit areas.

Features:

- Using Multintegrated circuitopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifintegrated circuitally for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver integrated circuit, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

F450 frame description

Features:

Built from quality glass fiber and polyamide nylon.

Integrated PCB connections for direct soldering of your ESCs

Pre-threaded brass sleeves for all of the frame bolts.

Colored arms for orientation to keep you flying in the right direction.

Large mounting tabs on main frame bottom plate for easy camera mounting.

Easy assembly.

Specs:

Width: 450mm

Height: 55mm

Weight: 280g (w/out electronics)

Motor Mount Bolt Holes: 16/19mm

G.Weight: 395g

Wheelbase: 17.7in/450mm

Net weight: 272g

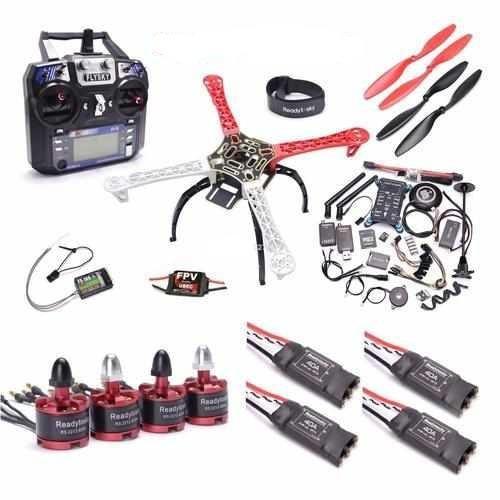

Package Included:

Flysky i6 remote control with ia6 receiver x 1

F450 / S500 / X500 Quadcopter Frame w/ landing gear x 1 ( send as your choice)

2212 920kv Motor 2CW / 2CCW x 4

40A OPTO Brushless esc x 4

12V UBEC x 1

Pixhawk 2.4.8 32bit ARM Flight Controller x 1

anti-vibration Shock Absorber Board X1

Safety button and buzzer x 1

RGB x 1

​​​​4G card x 1

M8N Gps Module x 1

Black Gps Holder x 1

Power Module x 1 ( yellow and black color XT60 connector PM send at random）

Minim OSD w/ shell x 1 ( 2 kind of OSD cable send at random)

I2C Splitter Expand Module x 1

PPM Module w/ shell x 1

433mhz telemetry x 1 ( defualt version is 433mhz, please leave a message to us if you want 915mhz version)

6pin turn 6pin cable x 1

4pin turn 4pin cable x 1

3pin DuPont line x 1

8pcs 1045 Propeller (4 pairs)

battery belt x 1
