F450 Frame set

F450 frame description

Features:

Built from quality glass fiber and polyamide nylon.

Integrated PCB connections for direct soldering of your ESCs

Pre-threaded brass sleeves for all of the frame bolts.

Colored arms for orientation to keep you flying in the right direction.

Large mounting tabs on main frame bottom plate for easy camera mounting.

Easy assembly.

Specs:

Width: 450mm

Height: 55mm

Weight: 280g (w/out electronics)

Motor Mount Bolt Holes: 16/19mm

G.Weight: 395g

Wheelbase: 17.7in/450mm

Net weight: 272g

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

Features:

1. The advanced 32-bit ARM CortexM4 high-performance processors, can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

Microprocessor

1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit

2. frequency: 168MHZ, 256K RAM

3.32 STM32F103 backup coprocessor

Sensor

1.L3GD20 3-axis digital gyroscope 16

2.LSM303D 3-axis accelerometer 14 / Magnetometer

3.MPU6000 6-axis accelerometer / magnetometer

4.MS5611 precision barometer

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External MICRO USB Interface

2212 920kv Motor

- Type : 22 x 12mm

- KV: 920rpm/V

- Voltage: DC 7-12V

- Weight: 53g

30A simonk esc :

100% brand new

30A SimonK firmware Brushless ESC.

Soldered with 3pcs 3.5mm gold female plug, very convenient to connect motor.

ESC Specs:

Cont. current: 30A

Max. current: 35A

Input Voltage: 2-4S lipo / 4-12 cell Ni-MH/Ni-Cd

BEC: 5V 2A (Linear mode)

Size: 55x26x8mm (length 145mm including power cable)

Weight: ~24g

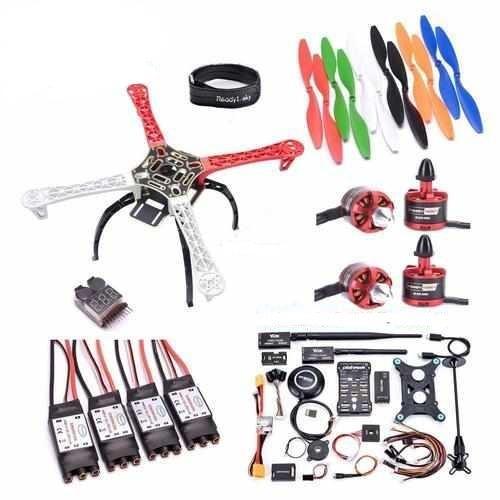

Package Included

1pcs F450 Quadcopter Frame w/ landing gear

1pcs anti-vibration Shock Absorber Board

1pcs Safety button and buzzer x 1

1pcs RGB x 1

1pcs 4G card (IO firmware has written)

1pcs Neo-M8N Gps Module x 1

1pcs Black Gps Holder x 1

1pcs Power Module x

1pcs Minim OSD w/ shell x 1

1pcs I2C Splitter Expand Module x 1

1pcs PPM Module w/ shell x 1

1pcs 433MHZ 1000mhz telemetry x 1

6pin turn 6pin cable x 1

4pin turn 4pin cable x 1

4pcs 2212 920kv / 1000kv Motor

​4pcs plastic motor prorection cover

4pcs 30A Simonk esc

8pcs 1045 Propeller (4 pairs)( Send the color at random )

1pcs Low Voltage Buzzer Alarm
