F550 528mm PCB Quadcoper Set

Features:

- Adopts S800 upward tilt arm design

- Plastic injection moduling, ensures hardness and lighter weight

- Brushless gimbal compatible for FPV

Specifications:

- Wheelbase: 528mm

- Weight: 550g/720g(without/with gimbal)

- Motor suggest: 2212 KV980, 2216 KV880 KV900, 3108 KV720 KV900

- Prop suggest: 8038 9047 1038 1045 1047

- Battery suggest: 3S-4S 2200mAh-5200mAh

It comes with PCB center board of soldered

Side Pin APM V2.8.0 Flight Controller Upgrade Verstion 2.6 2.5.2 for Multirotor

APM V2.8.0 description:

- This version eliminates the 1.0mm 6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C external compass interface.

- Put DF13-5P GPS interface with external compass interface, convenient for the connection of GPS and externalcompass.

- V2.52 I2C interface changes to multifunctional MUX interface

- Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is effectively avoided

- V2.52 version 3.5V power supply adopts IPS79133, 6V withstand voltage, output current 100mA, need to supply power for six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing the possibility of Bad Gyro health

APM V2.8.0 Flight Controller

- Needle: staight

- Power supply: LP2985-3.3

- Max voltage: 16V

- Add a 47uF tantalum capacitor

- Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output)

Jumper cap choose:

- Built-in compass: plug the jumper cap in the MAG pin header.

- External compass: pull up the jumper cap from the MAG pin header.

100% brand new

2212 920kv Motor

- Type : 22 x 12mm

- KV: 920rpm/V

- Voltage: DC 7-12V

- Weight: 53g

30A simonk esc :

100% brand new

30A SimonK firmware Brushless ESC.

Soldered with 3pcs 3.5mm gold female plug, very convenient to connect motor.

ESC Specs:

Cont. current: 30A

Max. current: 35A

Input Voltage: 2-4S lipo / 4-12 cell Ni-MH/Ni-Cd

BEC: 5V 2A (Linear mode)

Size: 55x26x8mm (length 145mm including power cable)

Weight: ~24g

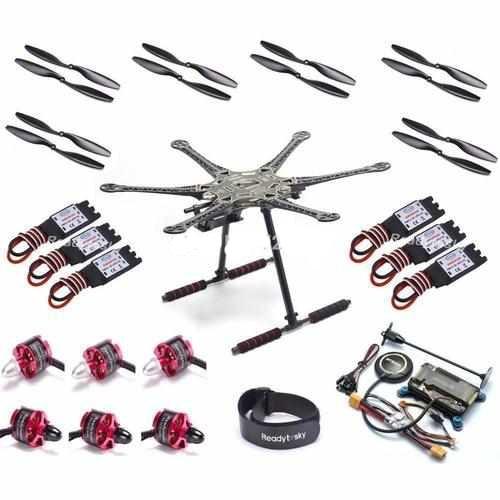

Package Included

Choice ONE：

1set X S550 RC Hexacopter Frame Kit + Landing Gear

Choice TWO：

1set X S550 RC Hexacopter Frame Kit + Landing Gear

3pcs X 2212 920KV Clockwise CW Brushless Motor

3pcs X 2212 920KV Counter-clockwise CCW Brushless Motor

6pcs x 30A Brushless Simonk ESC Speed Controller

1pcs X APM2.8 APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass

1pcs x Power Module

1pcs x shock absorber

1pcs x 8N GPS with Compass

5pcs x 10cm Servo Extension Lead Wire Cable MALE TO MALE

1pcs X GPS Folding Antenna Mount Holder Metal

12pcs X 1045 Propeller (6 pairs)

1pcs x battery belt
