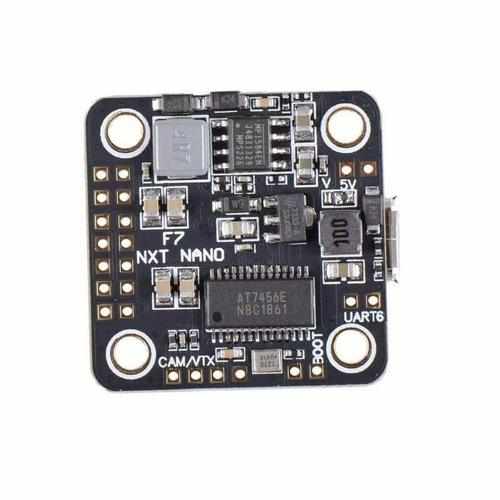

F7 NXT NANO Flight Controller

Features:

Input voltage 2S-6S, with BEC-5V output 3A current,

Supports mainstream receivers such as PPM, SBUS, DSM2/DSMX, IBUS and so on.

There are LED_STRIP interface and active buzzer interface.

LC filter, camera and graphics power supply voltage can choose 5V and battery voltage, default is 5V output.

Support DSHOT ESC.

Reserve four UART ports: UART1, UART2, UART4, UART6

Betaflight online parameter tuning.

The weight of the board is only 3.5 grams, the size is only 27*27MM, and the fixed hole spacing is 20MM (M2.5 hole position).

Specially tailored for four-axis model, built-in LC filter, supporting BF firmware;

Using STM32F722 MCU, ICM-20608 sensor SPI interface connection, faster operation speed;

Supporting 2-6S power input;

Built-in 5V 3A output BEC;

Support market mainstream receivers such as SBUS/PPM/DSMX;

Buzzer/Programming LED/Voltage Monitoring/BLHELI Tuning Programming;

Receiver configuration:

SBUS, DSM, IBUS, when receiving input, please configure RX1 as input interface.

When PPM is input, RX1 pad is also welded.

Characteristic:

CPU: STM32F722RET6

Sensors: ICM-20608 triaxial accelerometer/triaxial gyroscope (SPI connection)

Power supply: 2-6S battery input

BEC: Built-in 5V/3A

Receiver: Support Sbus or serial RX interface, Spektrum 1024/2048, SBUS, IBUS, etc.

Support 3.3V Spektrum Satellite Receiver

Supporting PPM Receiver

Buzzer interface

Support for programmable LED_Strip

Supporting BLheli suite Electric Tuning Programming

Built-in voltage detection and alarm

Built-in OSD function, BF online parameter adjustment

Outward Size: 27*27MM, Screw Hole Spacing 20*20MM, M2.5

Weight 3.5 grams

Packing including :

F7 NXT NANO Flight Control 1 PCS

6P*1.0MM Double Head Line
