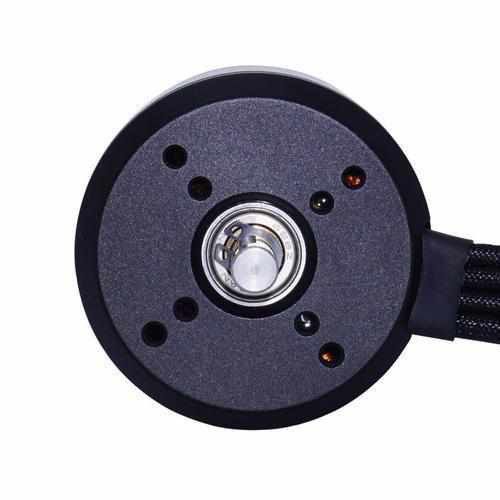

FLIPSKY 6354 190KV 2450W Brushless Belt Motor

$476.00

Product Spec Max Power: 2450 Watts Max Current: 65 Amps Max Volts: 12S Max Torque: 7Nm Motor Resistance: 0.053Ohm Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A) Weight: 1.23 lb / 0.56 kg The motor length:54mm The motor...

  • Availability: In Stock
Type

Product Spec

Max Power: 2450 Watts

Max Current: 65 Amps

Max Volts: 12S

Max Torque: 7Nm

Motor Resistance: 0.053Ohm

Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)

Weight: 1.23 lb / 0.56 kg

The motor length:54mm

The motor diameter: 63mm

SHAFT: Diameter 8mm, 24mm length, 3x3x15mm keyway slot.

Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.

Wire configuration:

Blue = A

Black = B

Yellow = C

BLDC Motor

Wire configuration:

Red = 5v

Blue = A

Yellow = C

Green = B

Black = GND

What's Our Product Feature?

Stator: Lamination Japan steel

12awg high strand silicone wire with 4.0mm gold bullet connectors.

Both support sensor and sensorless mode!
