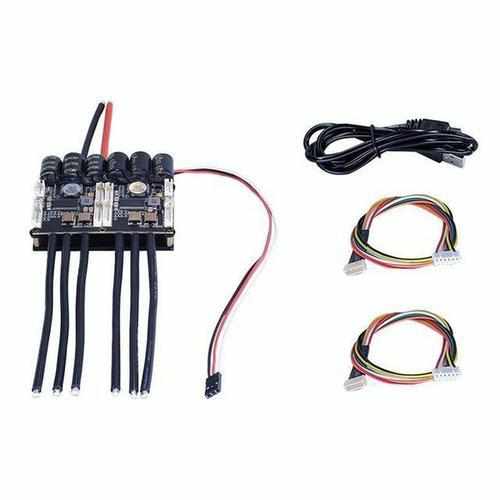

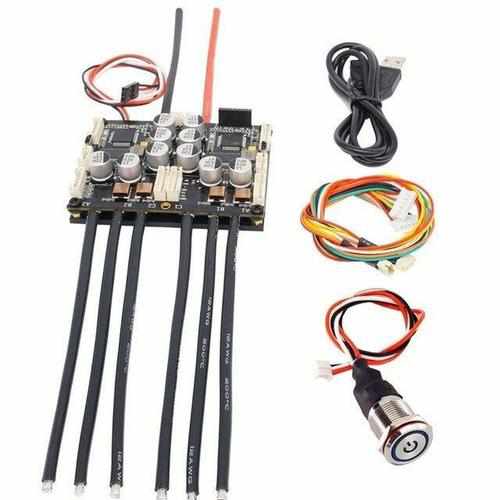

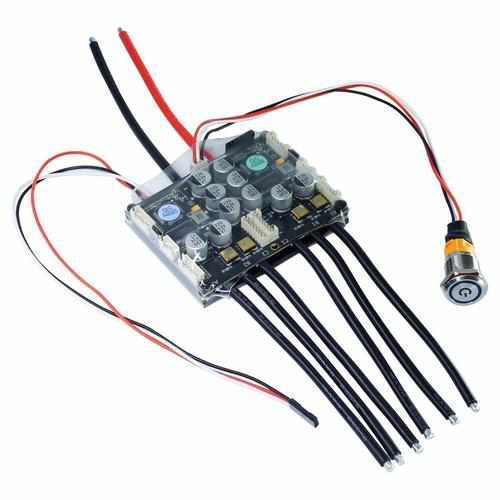

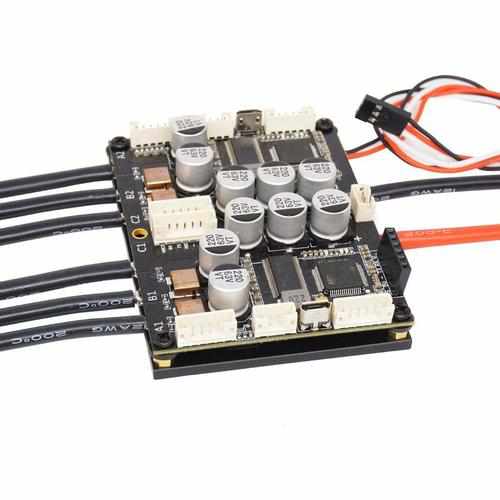

Flipsky Dual FSESC4.20 Plus with Speed Controller

Advanced Features:

Dual ESC can reach 100A big current, give your board strong power

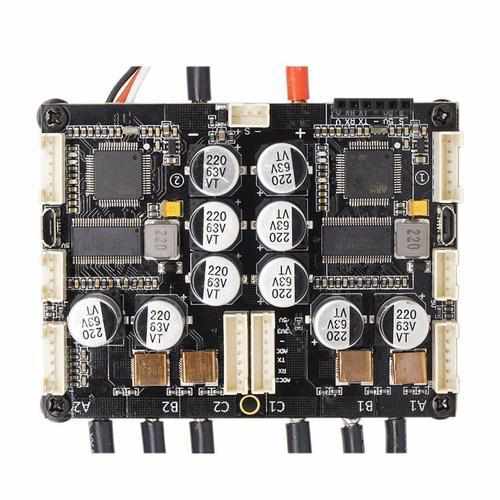

One PCBA board integrate two FSESC4.20 's function by internal CAN BUS circuit connection.

The mater and slave board connection can be switched On/Off

Delicate design in details for high quality assurance: add Anti-vibration silicon pad for screw heatsink and heat-transfer pad

Preserve Bluetooth module and RF module connections for both master and slave board

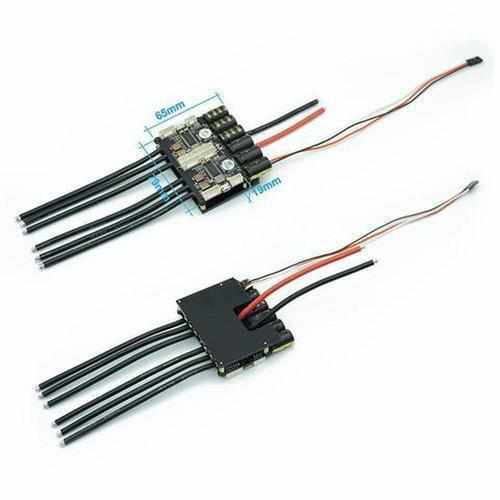

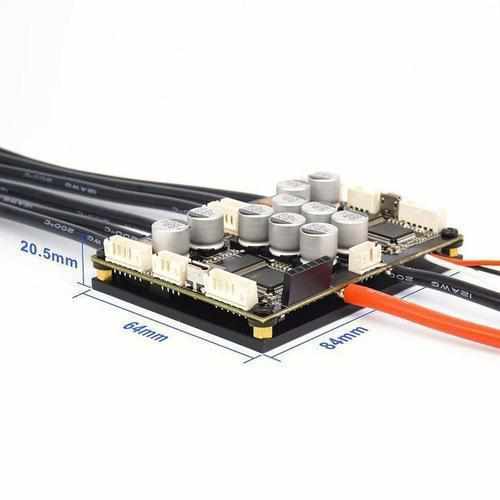

Super small size and light weight with heatsink: 79mm*65mm*19mm(L*W*H), wight: 150g

Specs

Hardware:V4.20

Firmware:Latest Version

Current:50A continuous/single, 100A continuous/dual , Instantaneous current 150A per single, total 300A for system instantaneous

current.

Voltage: 8V-60V (Cells: 3-13S LiPo)

ERPM:60000

BEC: 5V@1.5A

BEC type: Internal driver support

Modes: DC, BLDC, FOC (sinusoidal)

Timing: Software calibration

Cutoff Voltage: Programmable

Frequency: PWM input

Governor: No

Programming card: No

Reverse: Yes
