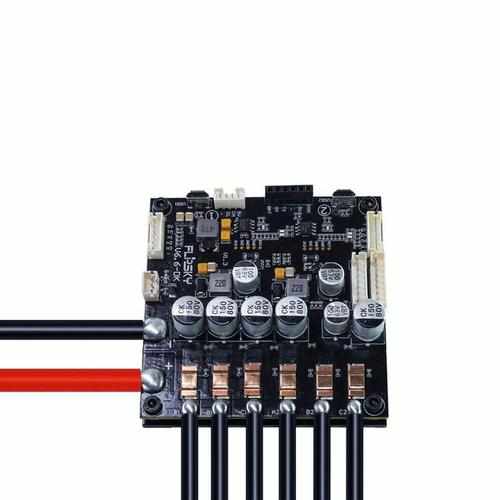

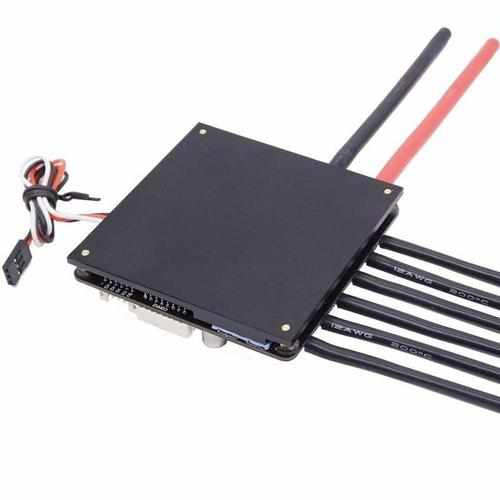

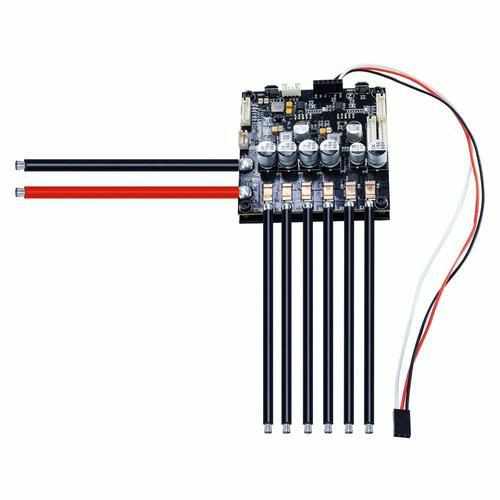

Flipsky Dual FSESC6.6 Plus Based on VESC6 100A Electric Speed Controll

Upgraded features:

Pro switch version:

Power on/off by pressing the button

Added Can bus connector, be more convenient for 4WD set up

Changed the USB port soldering process to SMT soldering instead of manual soldering

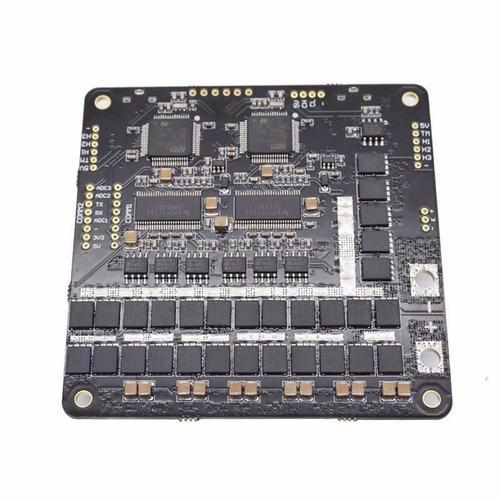

Changed the big capacitors to SMT mounting capacitors ,and add more mosfets in the bottom side.

Spec:

Hardware: V 6.6

Firmware: Latest firmware version

Voltage: 8V - 60V (Safe for 3S to 12S LiPo) for the dual ESC

Voltage spikes may not exceed 60V

Current: Continuous 100A single, total 200A , Instantaneous current 400A per single, total 800A for system instantaneous current.

5V 1.5A output for external electronics for single

3.3V 1A output for external electronics for single

Modes: DC, BLDC, FOC (sinusoidal)

Supported sensors: ABI, HALL, AS5047

ERPM:150000

Size: 78x78x20mm including heatsink
