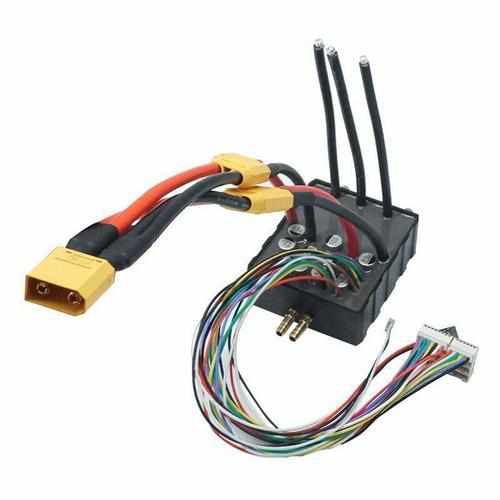

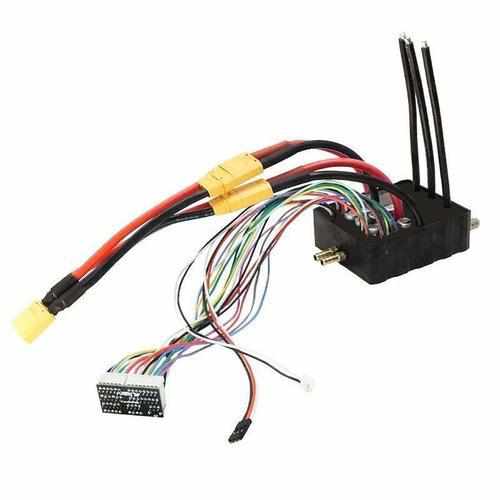

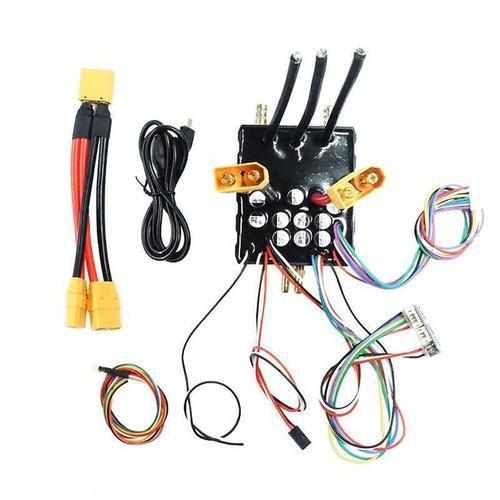

Flipsky FSESC 200A 60V VESC6 3-12S

Advanced Features:

ESC can reach continuous 200A big current, give your board strong power

Preserve Bluetooth module and RF module connections for both master and slave board

Aluminum anodized Heat sink with fins design for better heat dissipation

Compact size with heatsink:80x58x15mm (L*W*D)

Compact size with cool water case:120.11x72.93x31.45mm(L*W*H)

PCB layers: 8layers, thickness: 3oz/layer, total 24 oz thickness

Spec:

Hardware: V 6.6

EPRM:150000

Firmware: VESC_default_no_hw_limits

Voltage: 8V - 60V (Safe for 3S to 12S LiPo, Voltage spikes may not exceed 60V)

Current: Continuous 200A , Burst current 800A

5V 1.5A output for external electronics

3.3V 1A output for external electronics

Modes: DC, BLDC, FOC (sinusoidal)

Supported sensors: ABI, HALL, AS5047

Waterproof level:IP67
