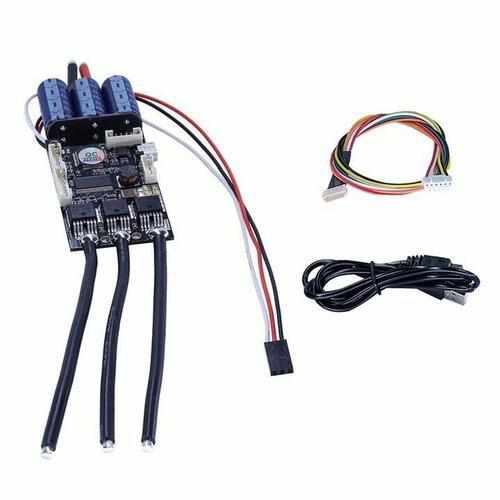

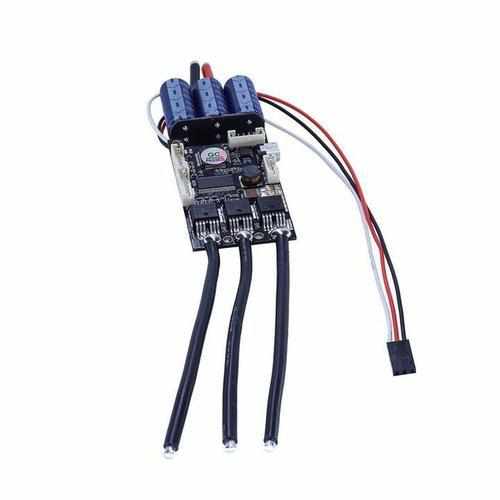

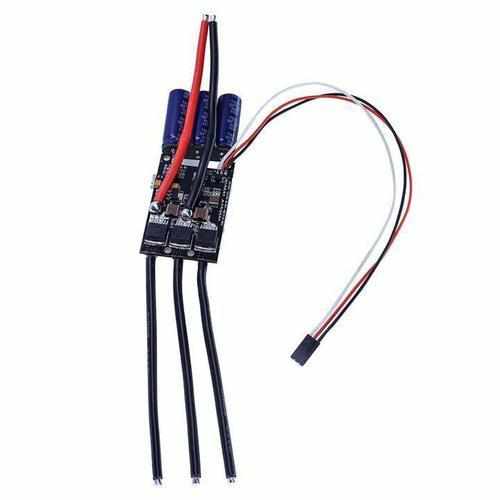

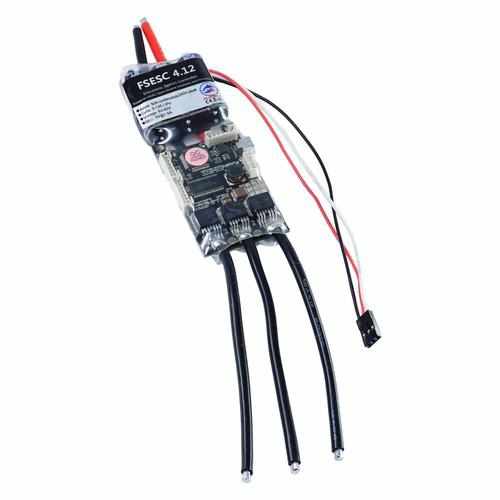

FLIPSKY FSESC 4.12 50A Based on VESC

The Flipsky ESC is based upon the VESC Open Source Project, and compatible with VESC Software.

The Flipsky ESC is a highly modifiable electronic speed controller designed for DIY Electric Skateboards conversions in mind.

The Flipsky ESC allows you to use sensorless motors to achieve smooth start-up from a stop,while traditional RC ESC's may have trouble starting. It also provides strong reliable and progressive electric braking.

Specs:

◆ Hardware:V4.12

◆EPRM:60000
◆ Firmware: V3.40(Keep upgrated with the latest firmware version)
◆ PCB:4 layers, size: 40*60mm
◆ Current: 50A continuous / 240A peak
◆ Voltage: 8V-60V (Cells: 3-13S LiPo)
◆ Recommended 10S battery
◆ BEC: 5V@1.5A
◆ BEC type: Internal driver support
◆ Timing: Software calibration
◆ Motor control interface: PPM signal (RC servo), analog, UART, I2C,
USB or CAN‐bus.
◆ Cutoff Voltage: Programmable
◆ Frequency: PWM input
◆ Governor: No
◆ Weight: 80g
◆ FSESC4.12 Size: 110x40x20mm
◆ Programming card: No
◆ Reverse: Yes
