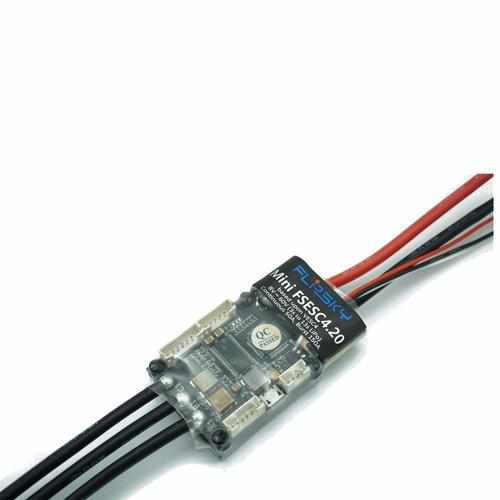

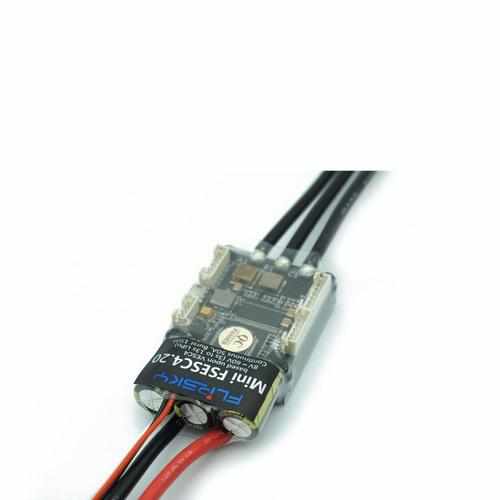

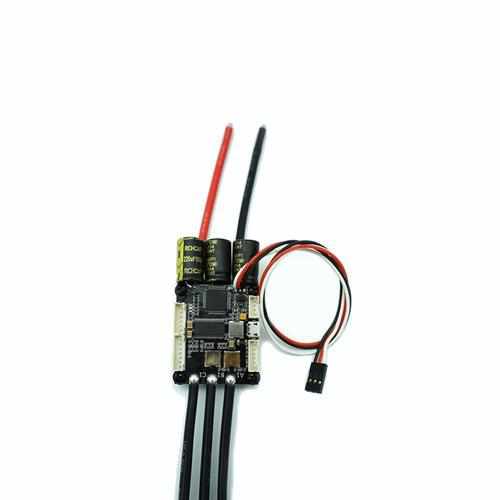

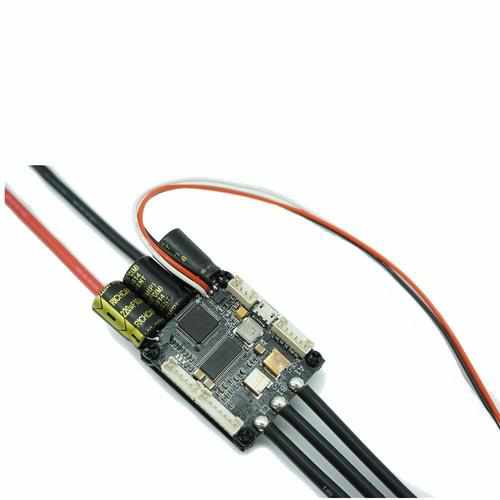

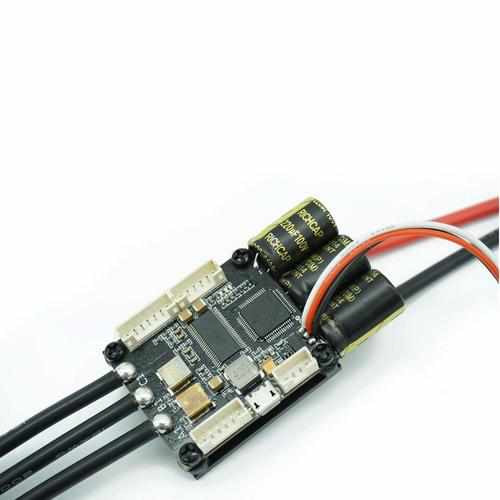

Flipsky Mini FSESC4.20 50A ESC Speed Control

Description:

Item Brand:FLIPSKY

Item name:Mini FSESC4.20 50A

Weight: about 80g

Packaging weight:about 160g

Size:67x39x18.3mm(Include Heatsink)

Packaging size:200mm*140mm*40mm

Fit for:Electric Longboard RC Car/E-bike/E-scooter

If you want to know the difference between FSESC4.20 and FSESC4.12,please click here

Specs:

Hardware:V4.20

Firmware: Latest Version

Amps: 50A continuous / 150A peak

Cells: 3-13S LiPo

Voltage: 8V-60V

BEC: 5V@1.5A

BEC type: Internal driver support

Timing: Software calibration

Cutoff Voltage: Programmable

Frequency: PWM input

Governor: No

Weight: 80g

PCB Size: 39x46x17.4mm

Size:67x39x18.3mm(Include Heatsink)

Programming card: No

Reverse: Yes

Package included:

1X Mini FSESC4.20 + Aluminum Heatsink

1X USB micro Flash Charge VOCC Cable

1X SENSOR WIRES

1XManual
