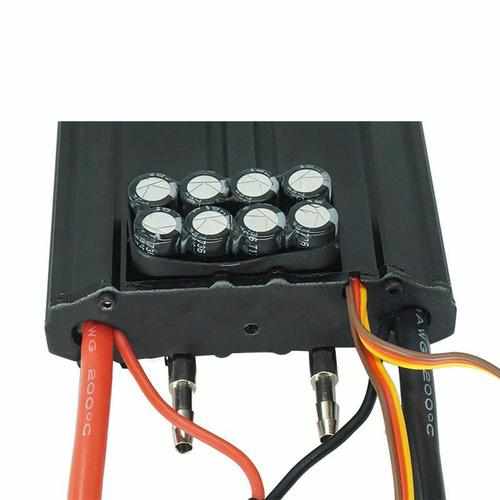

Flipsky Seal 300A 60V 6-14 Lipo ESC

Features:

Continuous Current:300A

Burst Current: 1000A

Battery NiXX/Lipo: 18-42 NC/6-14 Lipo

Power Cable: 8＃ ,160mm-Red/160mm-Black

Motor Cable: 8＃ ,160mm-Black

Signal wire 1: 60C,330mm with JR Male

Signal wire 2: 30C,150mm with JR Male

Width: 84mm

Length: 146mm

Height:28.6mm

Weight:640g

User Program:YES

The advantage of the Seal 300A 60V ESC

Light-weight, compact, small size perfect ESC for racing in mono.

Over-heat protection, low-voltage protection and lost-signal protection.

Programmable via PC interface, LCD programmer and PC interface and LCD progam card.

Smaller MOSFET to minimize weight.

Extremely lower internal resistance.

Super smooth throttle linearity.

Throttle Calibration:

If the Marine ESC is used for the first time or the transmitter is changed, You have to
make the throttle calibration to attain the smoothest throttle response and resolution
throughout the entire throttle range of the transmitter, This step is done once to allow the
ESC to "learn and memorize" your Transmitter's throttle output signals.
Please note, Marine ESC has two different modes"One Way"and "Two Way". You can
get into these two different modes by different throttle calibration way.

ONE way mode:

1. Switch your Transmitter ON and set the throttle stick to its maximum position.
2. Connect the battery pack to the ESC, Wait for about 2 seconds, the motor will beep for
twice, then put the throttle to the minimum position, the motor will also beep which
indicates that your ESC has got the signal range of the throttle from your transmitter.
TWO way mode:
1. Switch your Transmitter ON and set the throttle stick to its maximum position.
2. Connect the battery pack to ESC, Wait for about 2 seconds, the motor will beep for twice.
then put the throttle to the neutral position, the motor will also beep which indicates that
your ESC has got the signal range of the throttle from the transmitter.

Wire Connection:
The speed controller can be connected to the motor by soldering directly or with high
quality connectors. Always use new connectors, which should be soldered carefully to
the cables and insulated with heat shrink tube. The maximum length of the battery pack
wires shall be within 6 inches.
For normal ESC with BEC output please see as follows:
