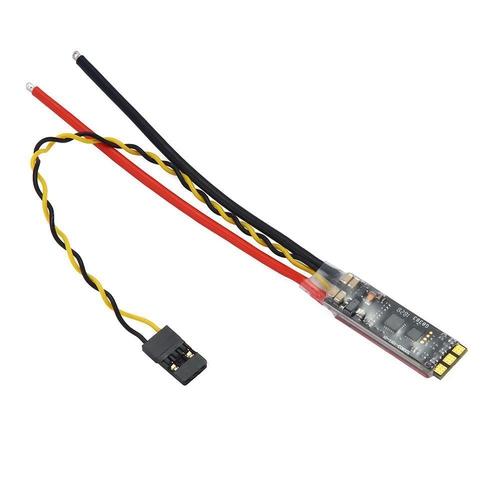

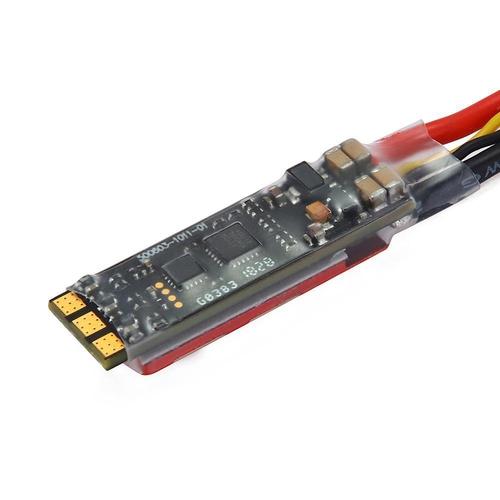

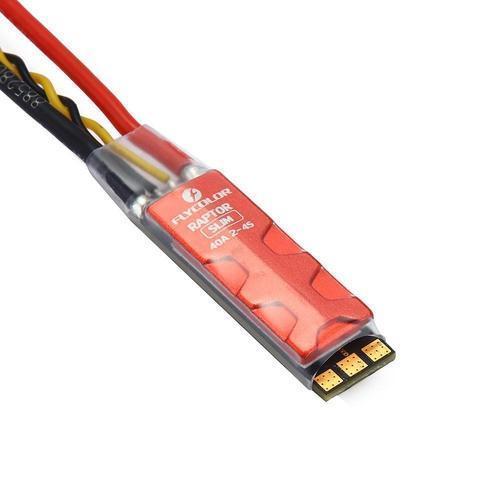

Flycolor Raptor Slim 40A 2-4S BLHeli-S ESC

Features:

Dedicated high frequency driver, makes the start more smooth. ESC maximum speed is 500k eRPM

BLHeli-S firmware is designed for superior performance in multirotors, and uses hardware generated motor pwm for smooth throttle response and silent operation

Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling

Supports higher KV motor and more power load, more suitable for violent flight of racing drone

The code supports regular 1-2ms pulse width PWM input, as well as Oneshot and Multshot . The input signal is automatically detected by the ESC upon power up.

Supports Dshot150, Dshot300 and Dshot600. Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration

The silicone twisted-pair of the throttle signal cable increase the service life, and effectively reduces the cross-talk caused by signal transmission and makes flight more stable

Suit 170 200 210 220 250 280 330mm RC FPV Racing Quadcopter

Specifications:

Model: RAPTOR SLIM 40A

Lipo cells: 2-4S

Con.current: 40A

Burst current (10S): 50A

Firmware: BLHeli-S

BEC: NO

Weight: 9.1g

Size: About 35 * 10 * 7mm

Apply for: 170-330mm Multirotor

Package information:

Package size: 12 * 10 * 2cm / 4.72 * 3.93 * 0.78in

Package weight: 15g

Poly bag package

Package list:（According to your choice）

1PC RAPTOR SLIM 40A ESC
