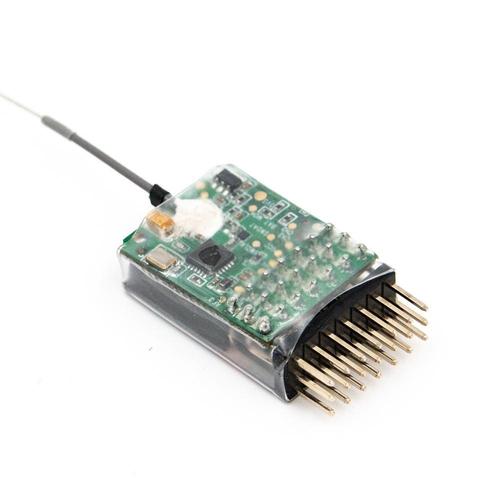

Flysky 2.4G 4CH FTr4 AFHDS3 Mini Receiver

OVERVIEW:

FTr4 adopts AFHDS 3, Flysky s third-generation automatic frequency hopping digital system. It uses a single-antenna bidirectional transmission system and is uniquely designed to save space and output standard PWM, PPM, i BUS and S.Bus signals.

Description:

Brand Name: FlySky

Item Name: FTr4 Receiver

PWM Channels: 4

RF.2. 4GHZ

2. 4G Protocol: AFHDS 3

Distance: >500m (Range without interference 1m from the ground)

Antenna: Single Antenna

put Power: 3.5-8.4V

RSSI: Yes

Data Output: PWM/PPM/i BUS/S BUS

Temperature Range:15°C-+60°C

Humidity Limit: 20%-95%

Online Update: Yes

Dimensions: 33.7*20*107mm

Weight: 4.9g

Certification: CE, FCC ID N4ZFGR4P00

Binding:

Insert the bind cable into the receivers bind port

Plug the power cable into any other port, and the receivers LED will start to flash quickly indicating that it has entered bind mode

Put the transmitter into bind mode; (See the transmitters instruction manual for more information)

Binding is successful when the receivers LED will stop flashing

Reconnect the power cable to the receiver

Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again.

Attention:

Make sure the product is installed and calibrated correctly, failure to do so may result in serious injury.

Make sure the receiver's battery is disconnected before turning off the transmitter, failure to do so may lead to unintended operation or loss of control.

Make sure the receiver is mounted away from motors, electronic speed controllers or any device that emits excessive electrical noise.

Keep the receiver's antenna at least 1 cm away from conductive materials such as carbon or metal.

Do not power on the receiver during the setup process to prevent loss of control.

Package Included:

1 x FTr4 Receiver
