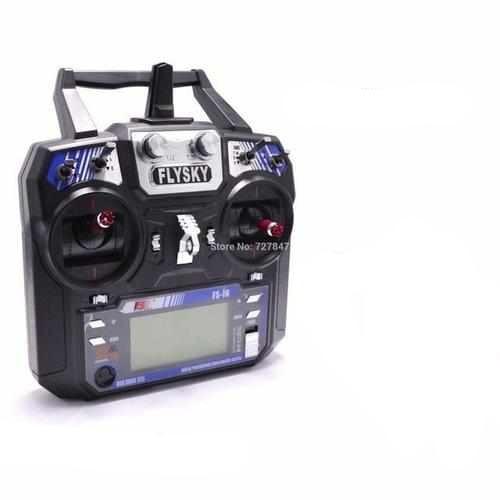

FLYSKY FS-i6 Transmitter With Receiver

Mode 1 is Right Hand Throttle, mode 2 is Left Hand Throttle

Brand Name: FlySky

Item Name: FS-i6 transmitter

Channel: 6

Model Type: fixed wing/helicopter/glider

Channel resolution: 1024 steps

Low voltage warning: less than 4.2v

ANT length: 26 x 2mm( dual antenna)

Weight: 392g

Battery: 6v 1.5AA x 4(not included)e

Size: 174 x 89 x 190 mm

Color: black

Certificate: CE ,FCC

RF specification:

RF Range: 2.405 - 2.475GHz

Bandwidth: 500khz

RF Power: less than 20dBm

RF mode: AFHDS 2A

Modulation type: GFSK

RX Sensibility: -105dBm

Receiver specification:

Channel: 6

Model type: fixed wing/helicopter/glider

RF receiver sensitivity: -105dBm

Modulation: GFSK

System type: AFHDS2A/AFHDS

Channel resolution: 1024 steps

Bind port: yes

Power port: yes( VCC)

Power: 4V -6.5V DC

Weight: 6.4g

Antenna lenght: 26mm

Size: 40.4 x 21.1 x 7.35 mm

Certificate: CE ,FCC

Features:

Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling!

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

FS-iA6B Specifications:

Item Name: FS-iA6B

Channel: 6

Frequency Range: 2.4055--2.475GHZ

Band Width Number: 140

Transmitting Power: 20dBm

RF Receiver Sensitivity: -105dbm

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Encoding: GFSK

Antenna Length: 26mm * 2 (dual antenna)

Input Power: 4.0-6.5V DC

Dimension: 47 x 26.2 x 15mm

Weight: 14.9g

Package Weight

Color: Black

i-Bus Interface: Yes

Data Acquisition Interface: Yes

Model Type: Airplane / Glider / Helicopter

Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

Features:

Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

FS-iA6 Specifications:

Channels: 6

Frequency Range :2.4-2 .48 GHz

Number of Band: 140

Transmitting Power: not more than 20dBm

Receiver Sensitivity:-105dBm

2.4G modes: Automatic frequency second generation digital systems

Encoding: GFSK

Weight: 6.4g

Input Power :4.0-6 .5 V DC

Dimensions: 40.4 x 21.1 x 7.35 mm

Color: Black

i-BUS Interface: No

Data Acquisition Interface: No

Certification: CE0678,FCC

Usage: Suitable for RC Airplane / glider / helicopter

Compatible Transmitter: Flysky FS-i10,FS-i6,FS-i4,FS-GT2F,FS-GT2E,FS-GT2B

FS-iA10B Receiver Specifications:

Brand Name: Flysky

Item Name: FS-iA10B

Channel: 10

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Antenna Length: 26mm * 2 (dual antenna)

Input Power: 4.0-6.5V DC

Weight: 19.3g

Size: 51mm*34mm*15mm

Color: Black

i-Bus Interface: Yes

Data Acquisition Interface: Yes

Model Type: Airplane / Glider / Helicopter

Compatible Transmitter: Compatible with FS-i4, FS-i6,FS-i6S, FS-i10,FS-iT4S

FS-A8S Specifications:

Channels: PPM 8CH, i-BUS 18CH

Model type: Multi-rotor

Frequency range: 2.408-2.475GHz

Band width: 500KHz

Band number: 135

RX Sensitivity: -92 dBm

2.4GHz system: AFHDS 2A

Modulation type: GFSK

DSC port: PPM/i-BUS/S.BUS

Transfer method: FHSS

Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS

Antenna length: 26mm (Not including brass contacts)

Input power supply: 4.0-8.4V

Display method: LED

No ground interference ( Transmitting and receiving 1 m from the ground): >300m

Working current: 40mA

Each channel data: depend on the transmitter

Channel delay: <15mS

Size: 20*14*5.3mm

Weight: 1.2g

Certificate: CE0678, FCCID: N45ZA8S00

Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

FS-X6B Specifications:

X6B i-BUS 2.4GHz 6CH Receiver

Channels: 6(PWM), 8(PPM), 18(i-BUS)

Model Type: Multi-Rotor

RF Range: 2.408-2.475 GHz

Brand Wigth: 500KHz

Number of bands: 135

RF Power: No more than 20 dBm

RX Sensitivity: -95dBm

2.4GHz protocol: AFHDS 2A

Modulation Type: GFSK

Stick resolution: 1024

Low voltage alarm: Yes

DSC port: PPM/PWM/i-BUS

Antenna Length: 93mm (Dual Antenna)

Power input: 4.0-8.4V

On-line Update: Yes(Wireless)

Range: >300m

Weight: 4.5g

Size: 36*22*7.5mm

i-BUS Port: Yes

Certificate: CE0678, FCC ID: N4ZX6B00

Compitable Transmitter: All AFHDS 2A Transmitter, for example FS-i10 FS-i6,FS-i6S, FS-i6X, FS-i4, FS-i4X

FS-RX2A Pro V1 receiver

Channel: 10(IBUS), 8(PPM)

RF Range: 2.408-2.475GHZ

Number of bands: 135

RX Sensitivity: -92dBm

2.4GHz protocol: AFHDS 2A

Signal output: IBUS, PPM

Antenne length: 33mm

Power input: 5.0-20V

Control distance: 500m+

Current: 30MA

Size: 12*15mm

Weight: 0.9g

Flysky FS2A 4CH Receiver

Channels: 4CH

Output signal: PWM

Frequency range: 2.408-2.475GHZ

Band width: 135

Receiver sensitivity: -92DBM

2.4G mode: AFHDS 2A

Failfe: Yes

Supply voltage: 3.3-10V

Distance: 400+ meters

Working current: 20MA

Dimensions: 11 * 25MM

Weight: 0.9 grams

Model: Fli14+

2.4G 14CH Compatible Flysky AFHDS-2A Receiver

Channel: 14CH

Protocol: AFHDS-2A

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Antenna Length: 70mm (Dual Antennas)

Input Voltage: 4-6.5V DC

Weight: Only 1.7g

Size: 25x15x5mm

Color: Black

Signal Outpu: IBUS

RSSI Output: Channel14

No ground interference ( Transmitting and receiving 1 m from the ground): more than 500m

Features:

Works in the frequency range of 2.405 to 2.475GHz.This brand has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency brand. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

Package Included

1 x FS-i6 transmitter ( mode 1 or mode 2 send as your choice)

1 x FS-iA6 / FS-IA6B / FS-IA10B / FS-X6B / FS-A8S / Fli14 Plus / FS2A / RX2A Pro V1 Receiver ( send as your choice)

1 x Manual (CD)

With origianl packing box
