Flysky FS-iA6 FS-iA6B 6CH 6 Channel Remote Control Receiver

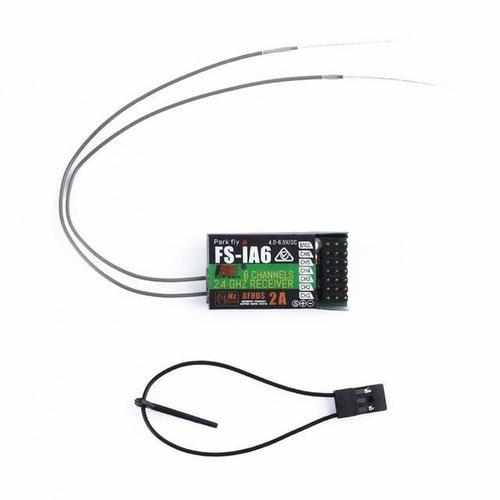

FS-IA6 Receiver:

2.4GHz AFHDS 2A system

2.4G modes: Automatic frequency second generation digital systems

Encoding: GFSK

i-BUS Interface: No

Data Acquisition Interface: No

Certification: CE0678,FCC

Usage: Suitable for RC Airplane / glider / helicopter

Compatible Transmitter: for Flysky FS-iA6

Specifications:

Brand Name: for Flysky

Item Name: FS-iA6 receiver

Channels: 6

Frequency Range :2.4-2 .48 GHz

Number of Band: 140

Transmitting Power: not more than 20dBm

Receiver Sensitivity:-105dBm

Input Power :4.0-6 .5 V DC

Color: Black

Size: 40 x 20x 13mm (not including cable length)

Cable length: 180mm

Net Weight: 8g

Package weight: 10g

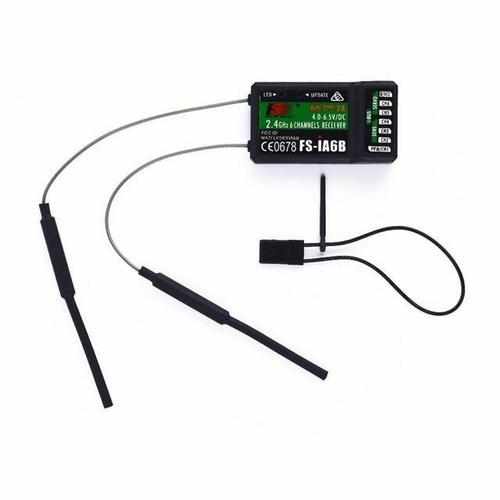

FS-IA6B Receiver:

Reliable, interference free 2.4GHz AFHDS2A signal operation.

Ultra light weight design.

Easy to bind and very fast link-up.

6 channel receiver compatible FlyskyFS-iA6B transmitter.

Quick and extremely stable in performance.

Specifications:

Channels: 6 Channels

Model type: Airplane / Glider / Helicopter

Frequency range: 2.4--2.48GHZ

Band width number: 140

Transmitting power: not more than 20dBm

RF receiver sensitivity: -105dbm

2.4G mode: the second generation of an enhanced version of the automatic FM digital system

Encoding: GFSK

Antenna length: 26mm * 2 (dual antenna)

Input power: 4.0-6.5V DC

Color: Black

i-Bus interface: Yes

Data acquisition interface: Yes

Dimension: 46 * 25 * 15mm(not including cable length)

Cable length: 145mm

Net Weight: Approx. 16g

Package weight: 18g

Package list:

1 * Receiver

1 * Bind plug
