Flysky Voltage Magneto-optical Sense Temperature Data Acquisition Modu

FS-CPD01 magnetic induction speed acquisition module

Adaptation receiver: iA6B (directly), iA10 (need to use conversion line, within the module package contains C header)

Suitable models: car / boat / aircraft

Acquisition speed range: 0-60000 rev / min

Weight: 6.6 g

Serial number: 15 (MAX)

Working current: 9mA (TYPE)

Input Power: 4.0-6.5V DC

Dimensions: 31 * 15 * 8 5 mm

Color: Black

FS-CPD02 light sensor speed acquisition module

Adaptation receiver: iA6B (directly), iA10 (need to use conversion line, within the module package contains C header)

Suitable models: car / boat / aircraft

Acquisition speed range: 0-60000 rev / min

Weight: 6.8 g

Working Current: 30mA (TYPE)

Serial number: 15 (MAX)

Detection distance: 50mm (TYPE)

Input Power: 4.0-6.5V DC

Dimensions: 31 * 15 * 8 5 mm

Color: Black

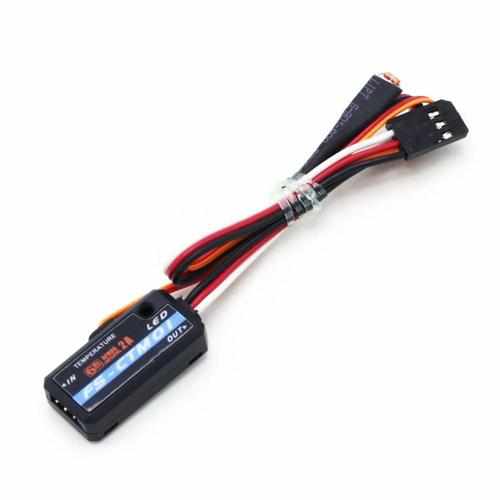

FS-CTM01 temperature acquisition module

Adaptation receiver: iA6B (directly), iA10 (need to use conversion line, within the module package contains C header)

Suitable models: car / boat / aircraft

Collecting temperature range: -40 to 250 degrees Celsius

Weight: 5.9 g

Serial number: 15 (MAX)

Working current: 5mA (TYPE)

Input Power: 4.0-6.5V DC

Dimensions: 31 * 15 * 8.5 mm

Color: Black

FS-CVT01 voltage acquisition module

Adaptation receiver: iA6B (directly), iA10 (need to use conversion line, within the module package contains C header)

Suitable models: car / boat / aircraft

Acquisition voltage range: -100 ~ 100V DC

Accuracy: 0.1V DC

Input Power: 9mA (TYPE)

Number of series: 15 (MAX)

Weight: 6.0 g

Input Power: 4.0-6.5V DC

Detection of anti-anti-function terminal: Yes (reverse will show a negative value)

Dimensions: 31 * 15 * 8.5 mm

Color: Black

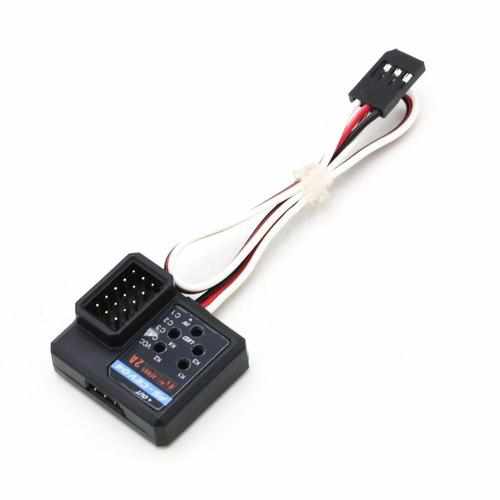

FS-CEV04 serial bus receiver

Adaptation receiver: iA6B (directly), iA10 (need to use conversion line, within the module package contains C header)

Number of Channels: 4

Suitable models: car / boat / aircraft

Quiescent current: 9MA (TYPE)

Weight: 8.1 g

Input Power: 4.0-6.5V DC

Dimensions: 30 * 25.6 * 13 mm

Color: Black

i-BUS interface: Yes (FUTABA-3PIN * 2.54MM)
