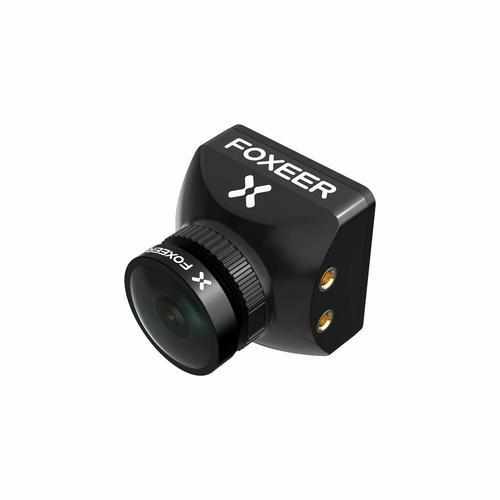

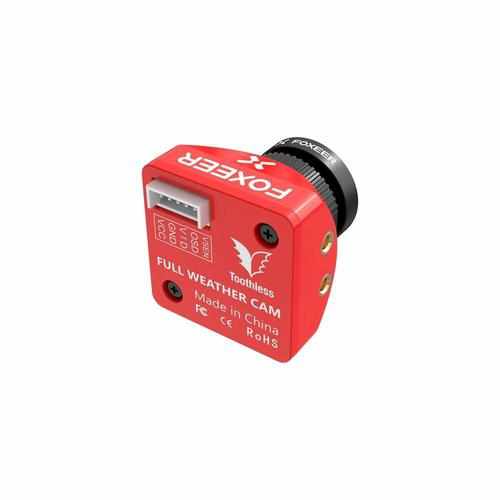

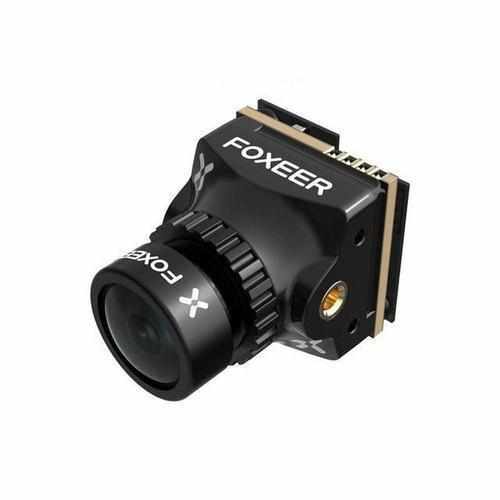

Foxeer Mini/Micro/Nano Toothless 2 CMOS 1/2 1200TVL FPV OSD Camera

Description:

Brand Name: Foxeer

Item Name: Toothless Mini

Color: Black, Red(optional)

Sensor Type CMOS 1/2

Scale 4:3/16:9 Switchable

TV System PAL/ NTSC Switchable

Resolution 1200TVL

FOV Angle Switchable 4:3 Wide FOV-H 1457 FOV-D 180° M12 1.7mm Lens 4:3 Narrow FOV-H 1257 FOV-D 160° 16:9 FOV-H 1457 FOV-

D 165°

Shutter Speed (CCD IRIS) PAL: 1/25〜1/10000 sec; NTSC: 1/30〜1/10000 sec

Video Out CVBS

Min. Illumination 0.001 Lux

White Balance Auto

DNR 3DNR

WDR 100db

Day / Night Shift EXT/ Auto/ Color/ B&W

Flight OSD Voltage/Cam Title/Time

Power Requirement DC 4.6V〜20V

Language ENGLISH /中文/ PYCCKNN / ESPANOL/ITALIANO/ FRANCAIS/ POLSKIM/PORTUGUES /日本语 / EAAHNIKA

Working Temperature -10°C~+50°C RH90% MAX

Working Humidity 20-80%

Storage Temperature -20°C~+70°C

Storage Humidity 20-95%

Current 50mA±15%@DC12V, 115mA±15%@DC5V

Dimensions(mm) 21.8><21.8mm (without bracket)

Weight (g) 9.7

Package included:

1pcs* Toothless Mini All-weather Camera

Description:

FOXEER TOOTHLESS 2 MICRO

Sensor TypeCMOS M2"

Scale4:3/16:9 Switchable

TV SystemPAL/ NTSC Switchable

Resolution1200TVL

FOV Angle Switchable

4:3 Wide FOV-H 1457 FOV-D 180°

M12 1.7mm Lens 4:3 Narrow FOV-H 1257 FOV-D 160°

16:9 FOV-H 1457 FOV-D 165°

Shutter Speed (CCD IRIS)PAL: 1/25〜1/10000 sec; NTSC: 1/30〜1/10000 sec

Video OutCVBS

Min. Illumination0.001 Lux

White BalanceAuto

DNR3DNR

WDR100db

Day / NightEXT/ Auto/ Color/ B&W

Flight OSDVoltage/Cam Title/Time

Power RequirementDC 4.6V〜20V

Language

ENGLISH /中文/ PYCCKNN / ESPANOL/ITALIANO/

FRANCAIS/ POLSKIM/PORTUGUES /日本语 / EAAHNIKA

Working Temperature-10°C~+50°C RH90% MAX

Working Humidity20-80%

Storage Temperature-20°C~+70°C

Storage Humidity20-95%

Dimensions(mm)19x19mm

Weight (g)8.5

Package included:

1pcs* Toothless Micro All-weather Camera
