FPV 5.8G 48CH RC832HD RC-HD Receiver

Features:

· 48 channels: Cover A,B,E,F,Rbands and L band (Airwave band), 6bands and all frequencies compactable;

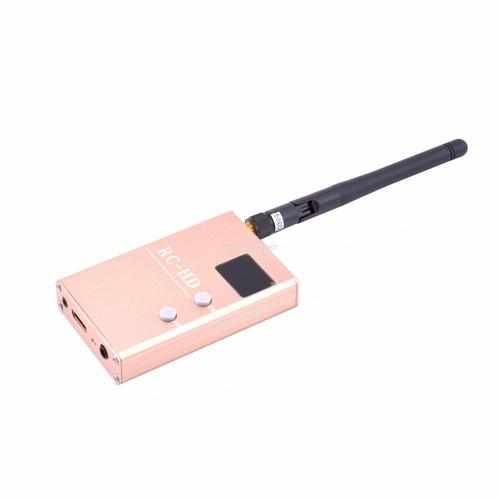

· Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;

· Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;

· Power off memory: Replay the very last frequency band and channel

· Independent video and audio signal outputs

Channel and Digital tube display

Power on， press the “CH” button to change channel，“CH” digit display will change synchronously，“CH” digit display changes cyclically from 1 to 8.

Frequent and Digital tube display

Power on， press the “FR” button to change frequency band，“FR” digit display will change synchronously，“FR” digit display changes cyclically from 1 to 6.

FR1 for A band，FR2 for B band，FR3 for E band，FR4 for F, FR3 for R band, FR3 for L band band(Airwave band).

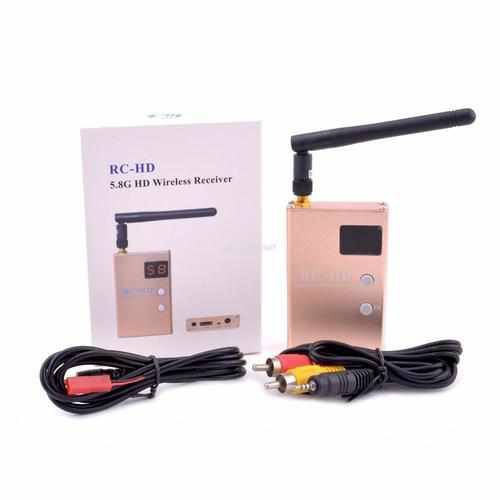

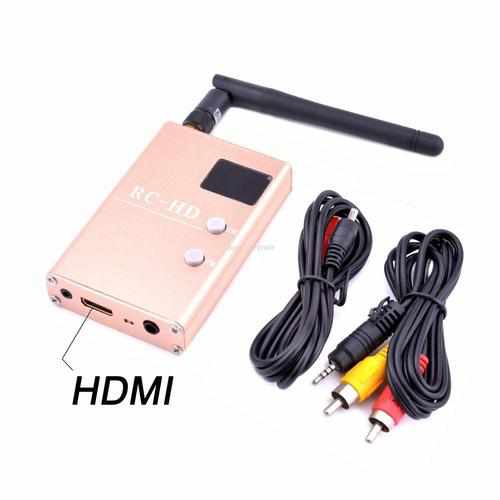

Standard Accessories

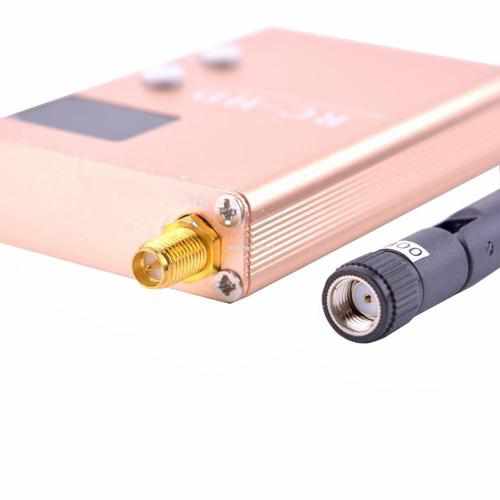

·SMA Standard Type Dipole Antenna*1

·Stereo Jack to RCA AV Output Cable*1

·1080P/720P Pull setting switch

·Power cable*1
