FPV 5.8GHz RC832S Receiver

The RC832 Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn't get any simpler than this.

Features:

• 48 channels: Cover A, B, E,F,H bands and L bands

• Two switching buttons for the band and channel

• Two digits display for the band and channel

• Power off memory for last channel and band

• dual Independent video and audio signal outputs

Specs:

Video format supported: NTSC/PAL

Antenna connection: RP-SMA, jack

Power input: 12V

Working current: 200mA max

Antenna impedance: 50Ω

Antenna gain: 2db

Rx sensitivity -90dBm

Video impedance: 75Ω

Video format: NTSC/PAL auto

Dimension: 80x 65 x15mm

Weight: 85g

Frequency range:

FR1: 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M

FR2: 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M

FR3: 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M

FR4: 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M

FR5: 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M

FR6: 5362M 5399M 5436M 5473M 5510M 5547M 5584M 5621M

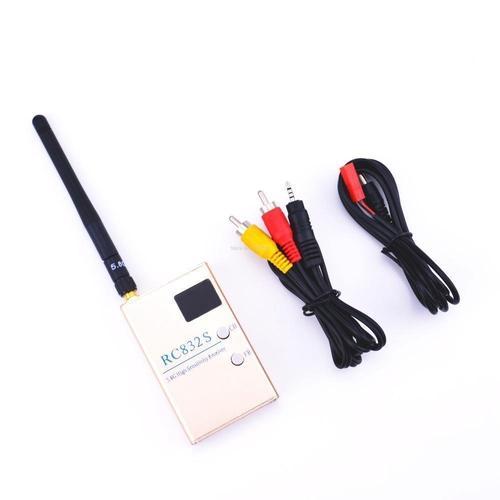

Package including: DSC_0790DSC_0782

1 x RC832S receiver w/ cables
