FPV Kit Combo System 1200TVL Camera

Designed specially for FPV and outdoor operation purpose. The monitor has very bright image(adjustable) and very wide power supply range(7-12V).The monitor also has a very important feature for FPV users. It doesn't have "blue screen" problem when the signal gets weak. This feature makes you able to fly much further and never lose image. When VTX is not connected ,it just show static.

Supported video format: NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG.

Features:

•Ultra Bright 500 CD/M⊃2; High-Definition Display

•Supports Composite Video RCA Input

•Display Resolution up to 1024*600 Pixels

•16:9 or 4:3 Adjustable Display Ratio

Designed for FPV Application

Application to FPV or Wireless Composite Video Camera in making Movies.

Specifications:

Panel Size: 7" widescreen

Brightness: 500 CD/M⊃2;

LCD Type: TFT LCD

Resolution: 1024 x 600

Aspect Ratio: 16:9 & 4:3

Contrast Ratio: 500:1

Light Source: LED Backlight

Surface Treatment: Anti-Glare

Viewing Angle: 70°/70°,50°/70° (L/R,U/D)

Inputs: Compostie 2 Video RCA Input

Input Voltage: DC 7.4~35V (suggest 3S battery)

Input Current: DC 0.5A-1.5A

Power Consumption: ≤8W Watts

Storage Temperature: -20°C to 70°C

Operating Temperature: -10°C to 60°C

TX TS832 specs:

Power input: 7.4-16V (3S Lipo suggested)

Transmitting power: 600mA

Antenna gain: 2db

Working current: 220mA at 12V

output : 5V

Video bandwidth: 8M

Audio bandwidth : 6.5M

Weight: 22g

Dimension: 54x 32x 10mm(excluding antenna)

Frequency and channel frequency table:

RX RC832 Specs:

The RC832 Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn't get any simpler than this.

*For best range and video link stability we recommend using the Boscam 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory's tab

Features:

• 48 channels: Cover A, B, E,F,H bands and L bands

• Two switching buttons for the band and channel

• Two digits display for the band and channel

• Power off memory for last channel and band

• dual Independent video and audio signal outputs

Specs:

Video format supported: NTSC/PAL

Antenna connection: RP-SMA, jack

Power input: 12V

Working current: 200mA max

Antenna impedance: 50Ω

Antenna gain: 2db

Rx sensitivity -90dBm

Video impedance: 75Ω

Video format: NTSC/PAL auto

Dimension: 80x 65 x15mm

Weight: 85g

Frequency range:

FR1: 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M

FR2: 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M

FR3: 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M

FR4: 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M

FR5: 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M

FR6: 5362M 5399M 5436M 5473M 5510M 5547M 5584M 5621M

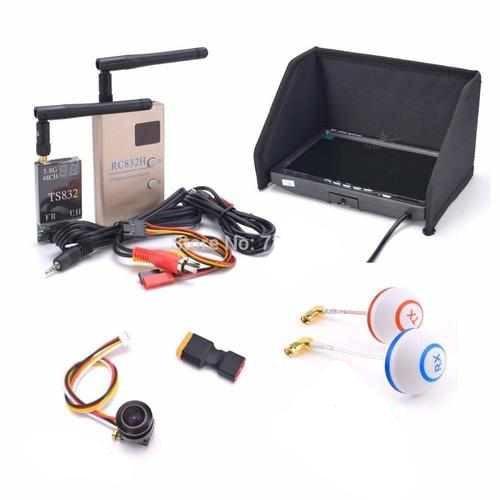

Package including:

1 x No blue 7 inch FPV monitor w/ cables ( battery is not included)

1 x RC832

1 x TS832

1x 1200TVL camera

1 x Sun hood

2 x antenna (send as your choice)

1 x XT60 to T plug connector
