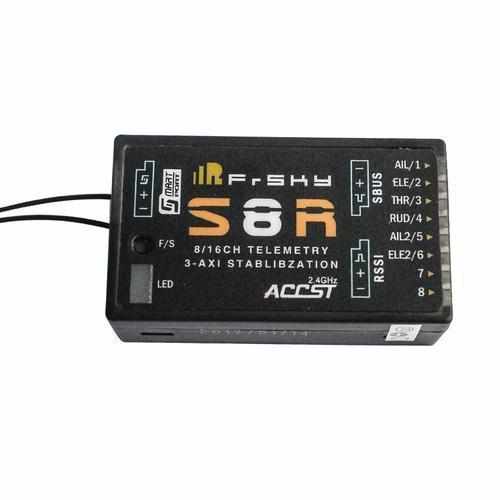

Frsky ACCST S8R 8/16CH SBUS Telemetry 3-axis Gyroscope Receiver

The S8R is a FrSky X-series receiver with built in 3-a xis stabilization. For conventional Fixed Wing Models it will support stabilization, automatic level, hover and blade-edge flight modes, for flying wings and V-tail models it supports stabilization and automatic level flight modes. You can edit the type of model and manipulate all these features via the S8R.Config or S8R.lua. The S8R can also be used as a standard 8 channel X series receiver if it is required.

Tip: Use the S8R with 3-a xis stabilization as a slave receiver with the RB-10 to give you that extra peace of mind by buying you valuable time to bring your model home.

Description:

Brand: Frysky

Item number: S8R

S8R (8CH/16CH receiver with built-in 3-a xis gy ro and 3-a xis acceleration)

46.47x26.78x14.12mm(L x W x H)

Weight: 14g

Number of Channels: 16CH (1-8ch from conventional channel output, 1-16ch from SBUS port)

With RSSI PWM output on board: PWM voltage output (0~3.3V), 100HZ, 1500±500us

Operating Voltage R ange: 4.0~10V

Operating R ange: full r ange

Gyroscope Measurement R ange ±2000dps

Accelerometer Measurement R ange: ±4g

Firmware Upgradeable

Compability: Frsky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 mode

S8R-EU only works with Frsky Horus X12S and Taranis X9D Plus/X9E/X7/XJT in D16-EU mode.

Features:

Built-in three-a xis gyroscope and three-a xis accelerometer sensor module

Built-in RSSI PWM output (0~3.3V)

Built-in battery voltage detection

Smart Port enabled

Package Included:

1X FrSky S8R 16Ch Telemetry Receiver
