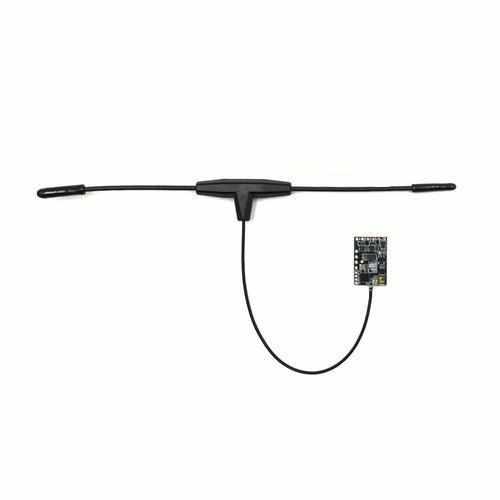

FrSky R9 MX Access Protocol / Supports OTA Functions Receiver

OVERVIEW:

The R9 MX is the enhanced versions of the previous R9 MM/Mini series long-range capable receivers, equivalent in size and weight equipped with a robust detachable Ipex1 antenna connector.

The R9 MX takes features from the previous R9 Mini and R9 MM making it compatible with more external devices by providing an Inverted S.Port output and supporting the redundancy function. Additionally, it retains soldering points to connect 4 PWM channels. The enhanced design proves to be more durable, and in conjunction with the latest ACCESS firmware, the two are now synchronized and we are able to unlock the true potential of the ACCESS protocol.

FEATURES:

ACCESS protocol and supports OTA functions

900MHz/868MHz long-range with low latency

Enhanced and durable design

Support S.Port / F.Port (Configurable in OpenTX / FrOS menu)

With inverted S.Port outputs

Signal redundancy function

Detachable Ipex1 connector antenna

SPECIFIATION:

Frequency: 915MHz

Dimension: 18*12*3.2mm

Weight: 3.2g

Numbers of Channel: 4 PWM / 16 SBUS (CH16 outputs RSSI)

Operating Voltage: DC 3.5V~10V

Operating Current: <100mA@5V

Compatibility: R9M Lite/ R9M Lite Pro / R9M 2019 with ACCESS firmware

Package Included:

1X R9 MX Receiver
