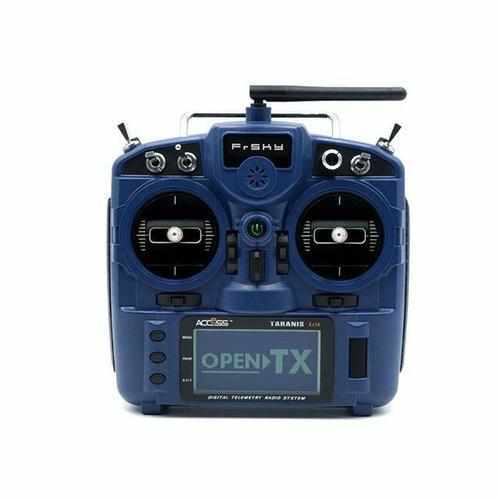

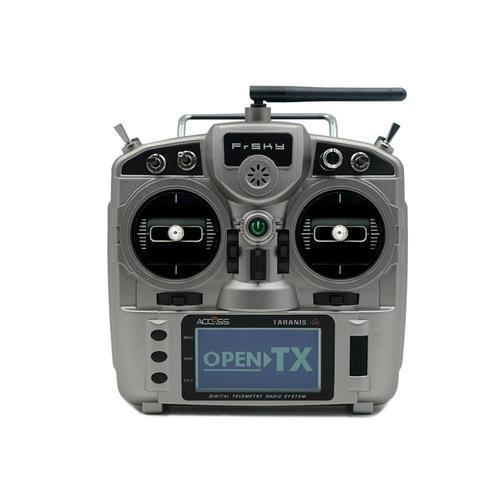

FrSky Taranis X9 Lite S 2.4GHz 24CH ACCESS ACCST D16 Mode 2 Transmitte

OVERVIEW:
As the upgraded version of Taranis X9 Lite, the X9 Lite S inherits its classic form factor from the FrSky Taranis X9D series remote control, with the addition of a program scroll button adding convenience when navigating the menu further improving the user experience. Some additions the S version has are dual momentary buttons on the top shoulders and hall sensor gimbals. The changes are not only on the exterior, this upgraded version features accurate SWR indicator along with the addition of our PARA Wireless Trainer Function, making it compatible with the FrSky Free Link App and AirLink S, while the wired training port is still retained. Balance charging for 2S Li-ion battery is now possible via the USB with an included USB cable.

The Taranis X9 Lite S also uses the latest ACCESS communication protocol, along with ErskyTX / OpenTX open-source operating system, which boasts 24 channels with a faster baud rate and lower latency because of its high-speed module digital interface. ACCESS features like wireless firmware updates and wireless configurations are completely supported, providing a more reliable more secure link between the transmitter and model. Even more practical features will be unlocked gradually, making the X9 Lite S a fully functioning remote control with a ton of extra features.

Specifications:

Brand Name: FrSky

Item Name: Taranis X9 Lite S Transmitter

Dimension: 184*170*101mm (L*W*H)

Weight: 525g (without battery)

Operating system: ErskyTX / OpenTX

Number of channels: 24 channels

Internal RF module: ISRM-S-X9

Operating voltage range: 6.0~8.4V

Operating current: 160mA@7.4V

Operating Temperature: -10℃ ~ 60℃ (14℉ ~ 140℉)

Backlit LCD resolution: 128*64

Smart Port, Micro SD card slot, Micro USB Port and DSC Port

Compatibility: ACCST D16 and ACCESS receivers

Features:

Ergonomic and compact design

Installed with ACCESS protocol

High-speed module digital interface

Dual easy-launch momentary buttons

Supports spectrum analyzer function

Accurate SWR indicator

New PARA wireless training system

High-speed training system with a lower latency

Compatible with FrSky Free Link App and AirLink S via mobile devices

Supports wired training function

G7-H92 hall sensor gimbal

Supports 2S Li-battery balancing charge with Micro USB interface

Haptic vibration alerts and voice speech outputs

Easily accessible battery compartment (*Batteries not included, adaptive with replaceable 18650 button top Li-ion batteries)

COMPARISON (Taranis X9 Lite & X9 Lite S)

X9 Lite

X9 Lite S

Ergonomic and compact design

√

√

Installed with ACCESS protocol

√

√

High-speed module digital interface

√

√

Easy launch momentary buttons

√

Supports spectrum analyzer function

√

√

Accurate SWR indicator

√

New PARA wireless training system

√

High-speed training system with a

lower latency

√

Compatible with FrSky Free Link App

and AirLink S via mobile devices

√

Supports wired training function

√

√

G7 Noble potentiometer gimbal

√

G7-H92 hall sensor gimbal

√

Supports 2S Li-battery balancing

charge with Micro USB interface

√

Haptic vibration alerts and voice

speech outputs

√

√

Easily accessible battery

compartment

(*Batteries not included, adaptive with

replaceable 18650 button top Li-ion

batteries)

Package Included:

1 x Taranis X9 Lite S Transmitter( mode 2)
