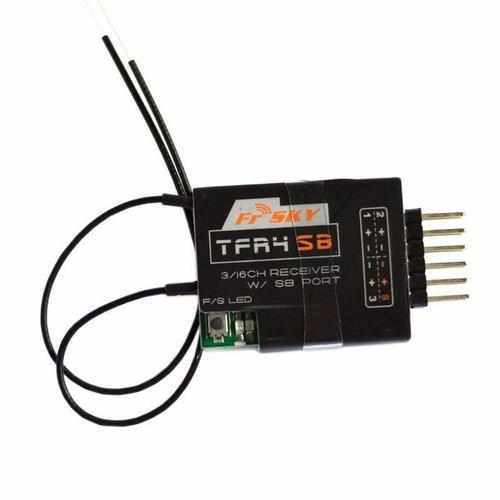

FrSky TFR4SB 2.4Ghz 3/16Ch S.BUS Receiver

Description:

100% brand new and high quality

Compatible with FASST 2.4GHz Air Systems (7CH Mode/Multi Mode) & Surface Systems (C1 Mode)

SB port is compatible with Futaba S.BUS servos and FrSky servo D12MB. No receiver channel limits (except by those on your

transmitter) and prevents mismatched servo channel connections.

Two selectable failsafe setting options (use native failsafe on transmitter or set failsafe on TFR4SB directly.

High sensitivity and stability.

Wide operating temperature range, suitable for all kinds of models.

Feature:

For: R/C Aircraft

Compatible FASST 2.4G Air Systems (7CH Mode/Multi Mode): 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ

Compatible FASST 2.4G Surface Systems (C1 Mode): 3PK, 4PK

Compatible servos via SB port: Futaba S.BUS servos, FrSky D12MB servo

Specification:

Number of Channels: 3~16 (4~16ch in S.BUS mode)

Operating Voltage Range: 3.5V~10V

Operating Temperature Range: -10~80 degree of Celsius

Servo Frame Rate: 14ms (FS-Normal Speed Mode), 7ms (HS-High Speed Mode)

Dimension: 41x24x6mm

Weight: 6g

Quantity: 1 pc

Package includes:

1 x TFR4SB S.Bus Futaba FASST Compatible 3 to 16 Channel Receiver (other accessories demo in the picture is not included.)
