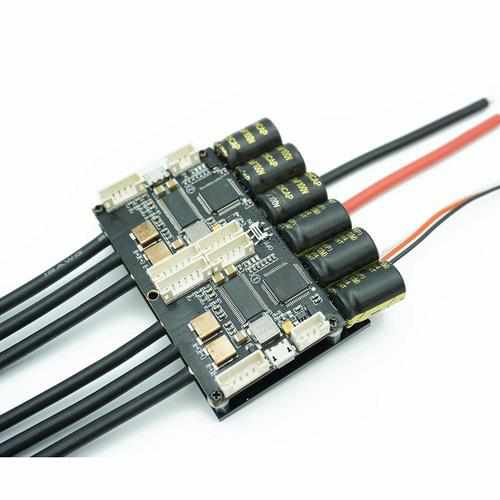

FSESC4.20 Based on VESC 4.20 100A ESC

Features:

Dual ESC can reach 100A big current, give your board strong power

One PCBA board integrate two FSESC4.20 ’s function by internal CAN BUS circuit connection.

The mater and slave board connection can be switched On/Off

Delicate design in details for high quality assurance: add Anti-vibration silicon pad for screw heatsink and heat-transfer pad

Preserve Bluetooth module and RF module connections for both master and slave board

Super small size and light weight with heatsink: 79mm*65mm*19mm(L*W*H), wight: 150g

Specifications:

Hardware:V4.20

Firmware:Latest Version

Current:50A continuous/single, 100A continuous/dual , Instantaneous current 150A per single, total 300A for system instantaneous current.

Voltage: 8V-60V (Cells: 3-13S LiPo)

BEC: 5V@1.5A

BEC type: Internal driver support

Modes: DC, BLDC, FOC (sinusoidal)

Timing: Software calibration

Cutoff Voltage: Programmable

Frequency: PWM input

Governor: No

Programming card: No

Reverse: Yes

Package contains:

1*Dual FSESC4.20 + Heatsink

2*VESC Sensor Wires

1*Micro USB

1*Manual
